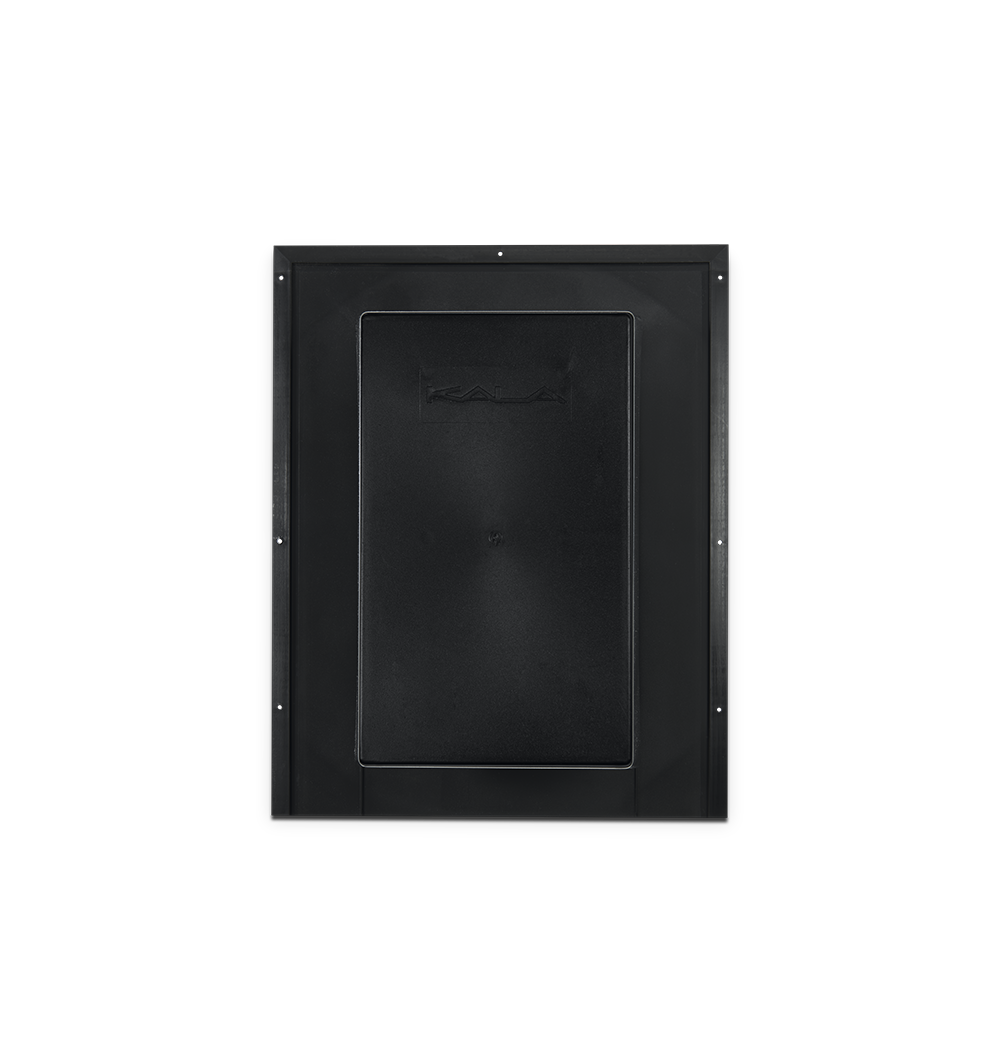

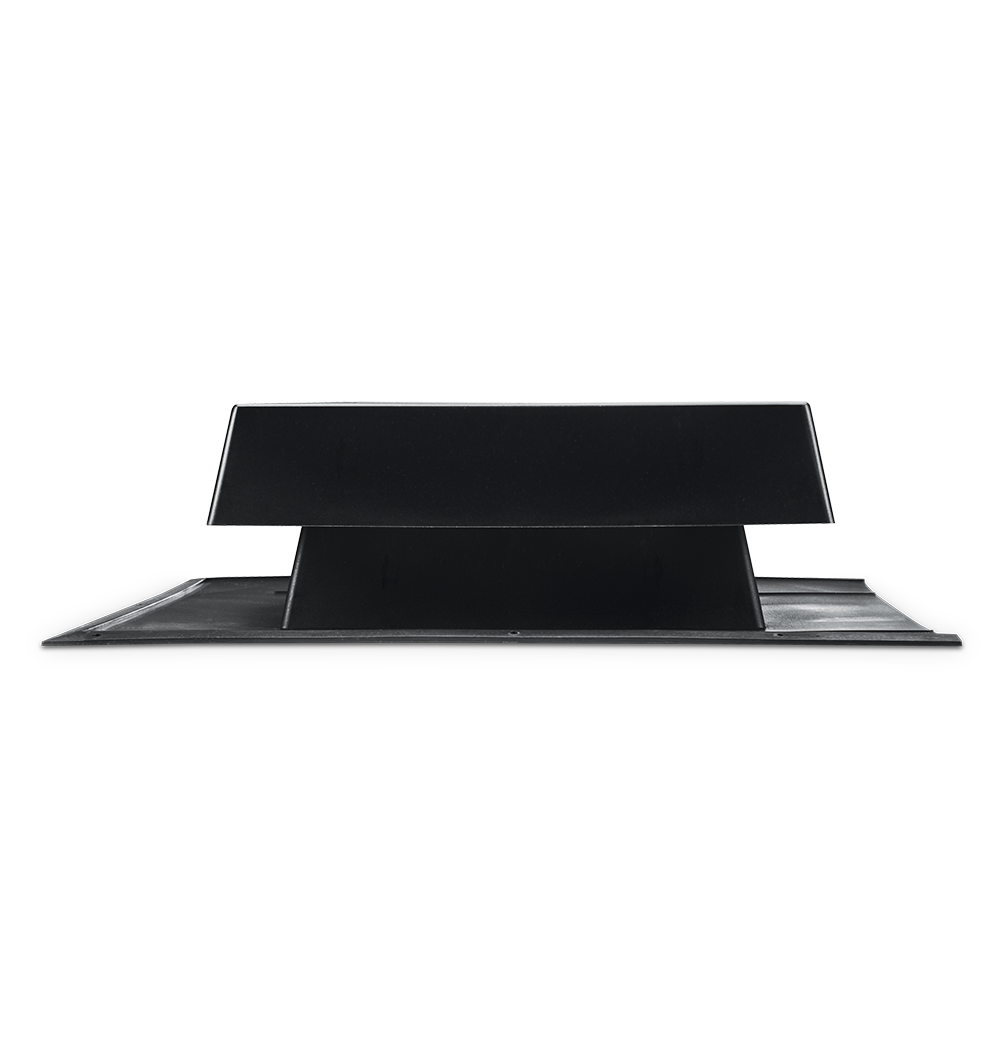

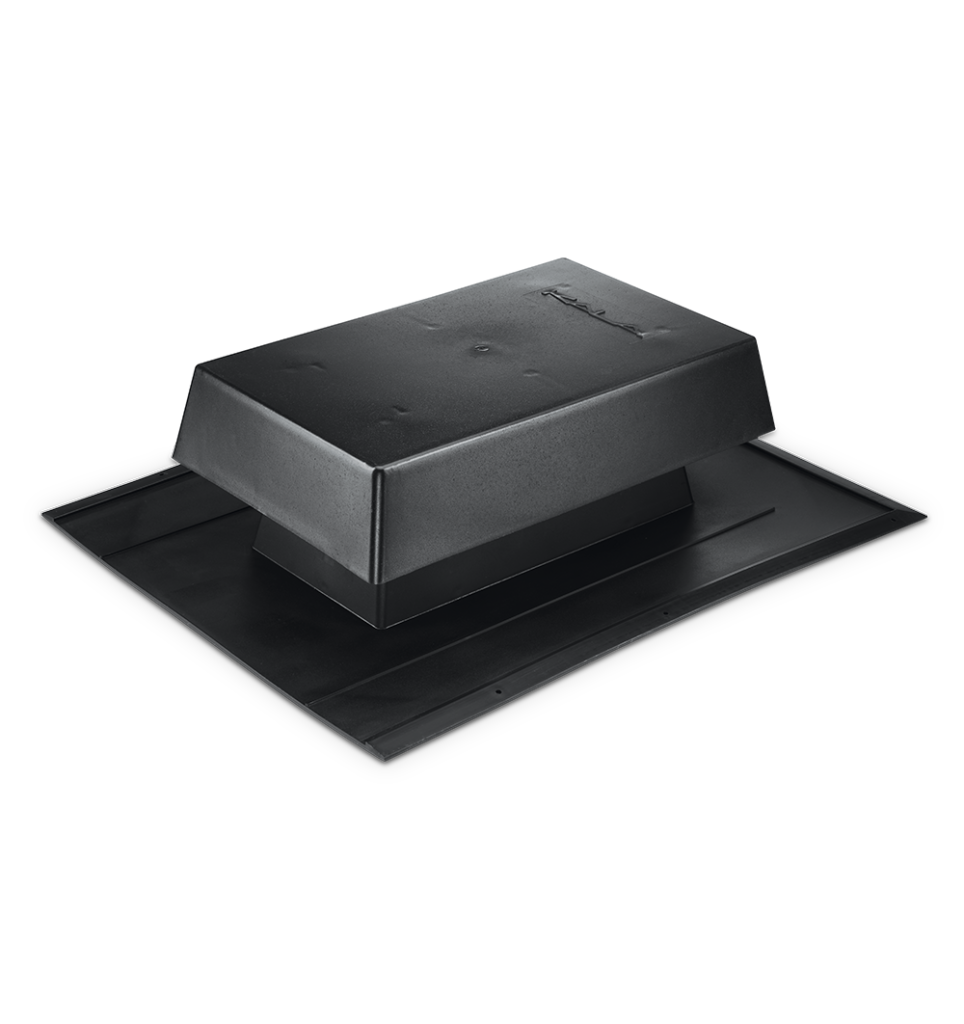

Ventilators for bitumen shingle roofs
Optimal ventilation of the roof structure or building with optional outlet vent connection.
Function
Ventilator to ensure air exchange on the levels to be back-ventilated for shingle roofs. The element can also be installed as an outlet vent using the flexible outlet vent connection, which is available as an accessory. Thus ensuring that the roofscape remains uniform.
Connection Method
A 270 x 150 mm opening is cut in the underlay. The lower shingles are brought up to the opening and fitted into place properly. Now align the fan evenly in the centre over the opening and fasten it in place through the holes in the rebate.
Important: Maintain a distance of approx. 30 mm between the shingles
and the ventilation duct at the sides and the top to ensure that water
drains off freely.
Technical Information
Technical data vent for shingle roofs
- Bottom section: length 410 mm, width 325 mm
- Top section: length 300 mm, width 195 mm
- Overall height: 120 mm
- Deck flange widths: 90/100 mm
- Default colors: brown and black
- Special colours (hood): grey and red
- Other colours available on request
- Interchangeable hood

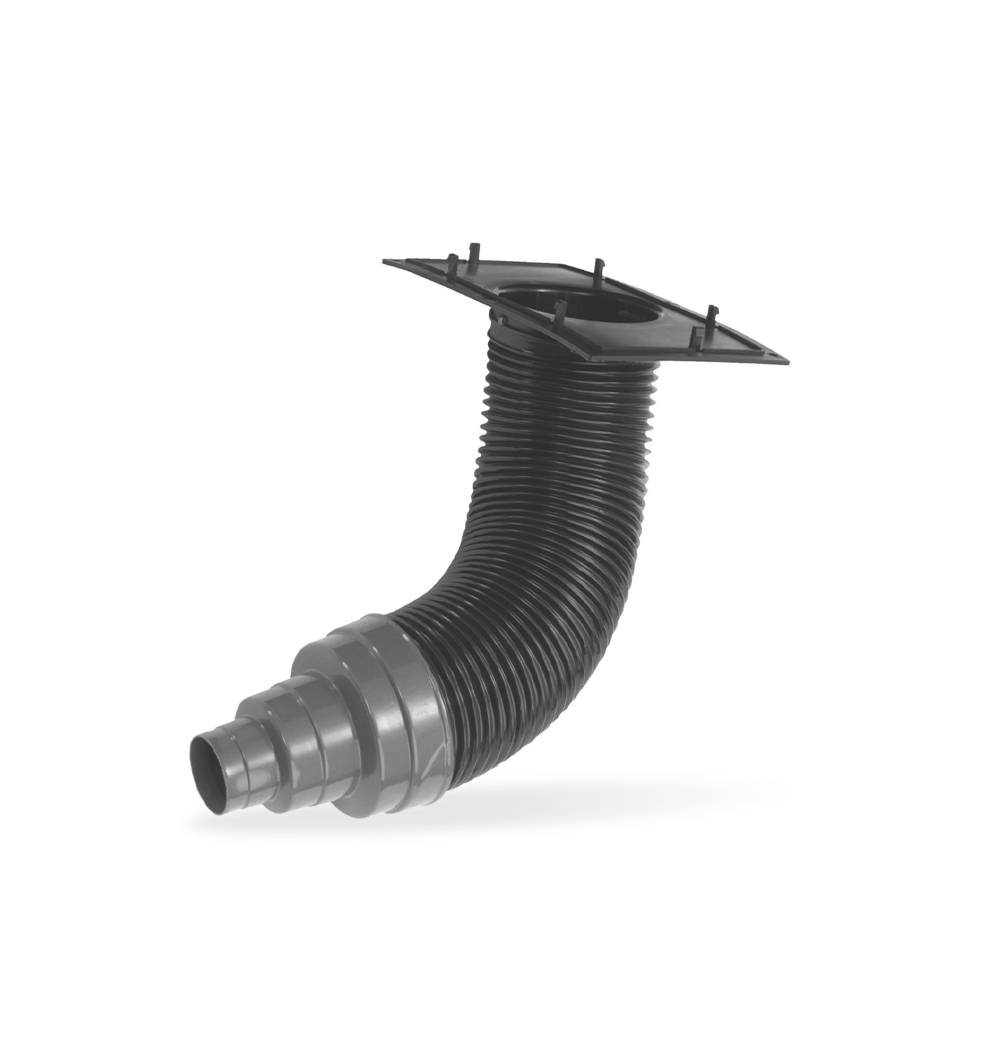

Technical data Outlet vent connection
- Length 260 mm
- Width 140 mm
- Air cross-section, fan: 170 cm²
- Air cross-section, flexible hose: 80 cm²
- Flex hose Ø: 100 mm
- For 50/70/100 mm hose connection
- Colour black
- All flexible tubes are basically UV-resistant
Versions Ventilators for bitumen shingle roofs
| Color | Technical information |
|---|---|
| Black | 180 cm² ventilation UV-resistant |
| Brown | |
| Red | |
| Gray |
Attention: The processing instructions of the roofing membrane manufacturer must be adhered to; Materials and used material compounds may be subject to change.
Examples
Versions Outlet vent connection
| Material | Technical information |
|---|---|
| PVC, UV-resistant |
DN 50 / 70 / 100 Length 30 cm |
| Accessory suitable for shingle roof fans | |
Attention: The processing instructions of the roofing membrane manufacturer must be adhered to; Materials and used material compounds may be subject to change.
Examples
Package units
Supplied in cartons, each containing 10 units
Tailored to meet your requirements
Do you have any questions or require a customised version of this product? Talk to our team of experts! We’ll discuss the available options with you to see how we can help!
