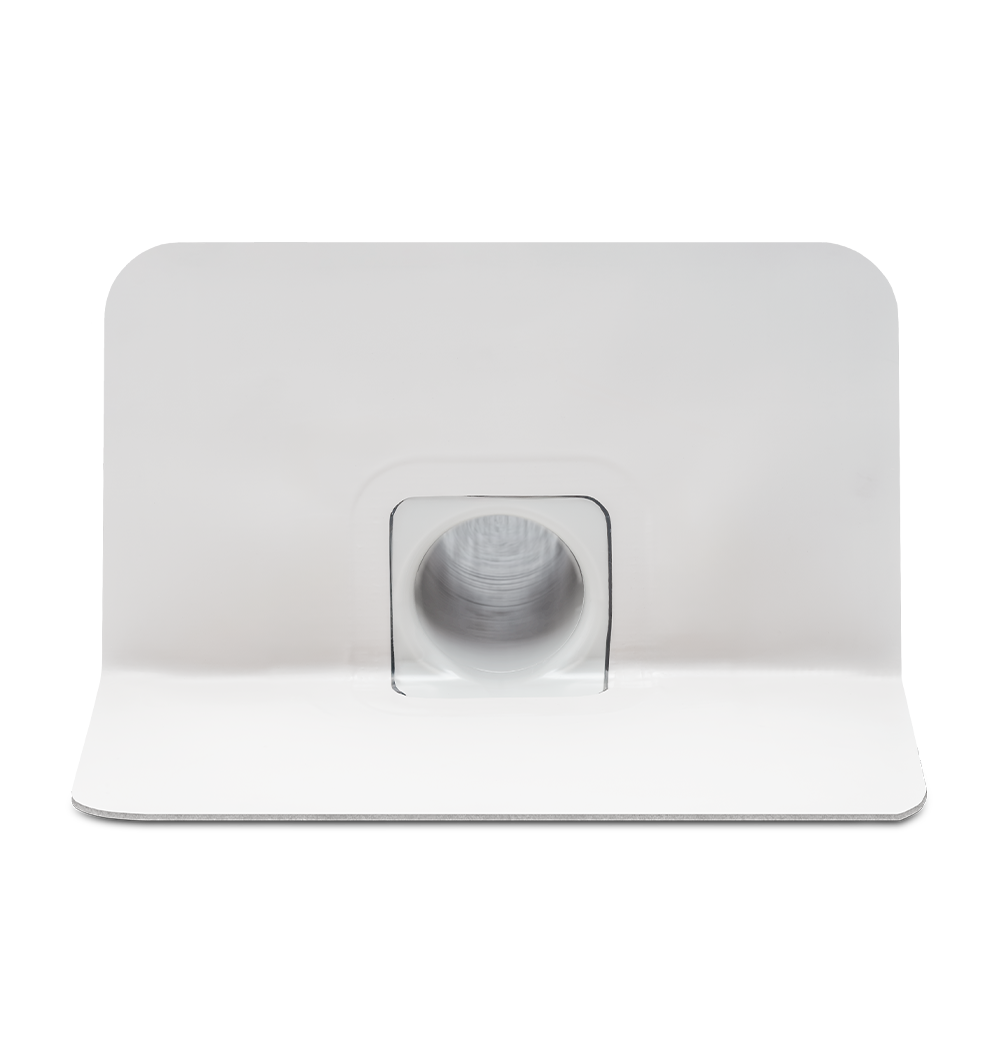

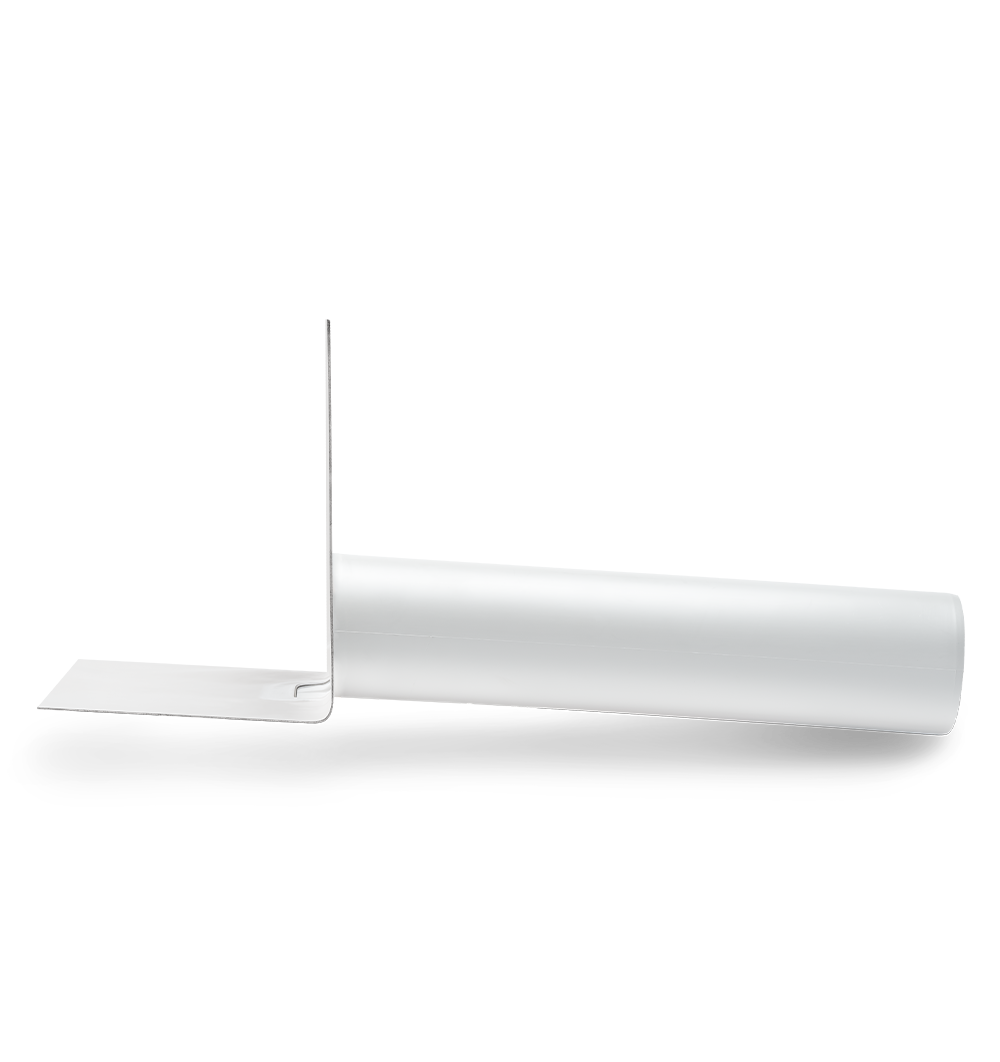

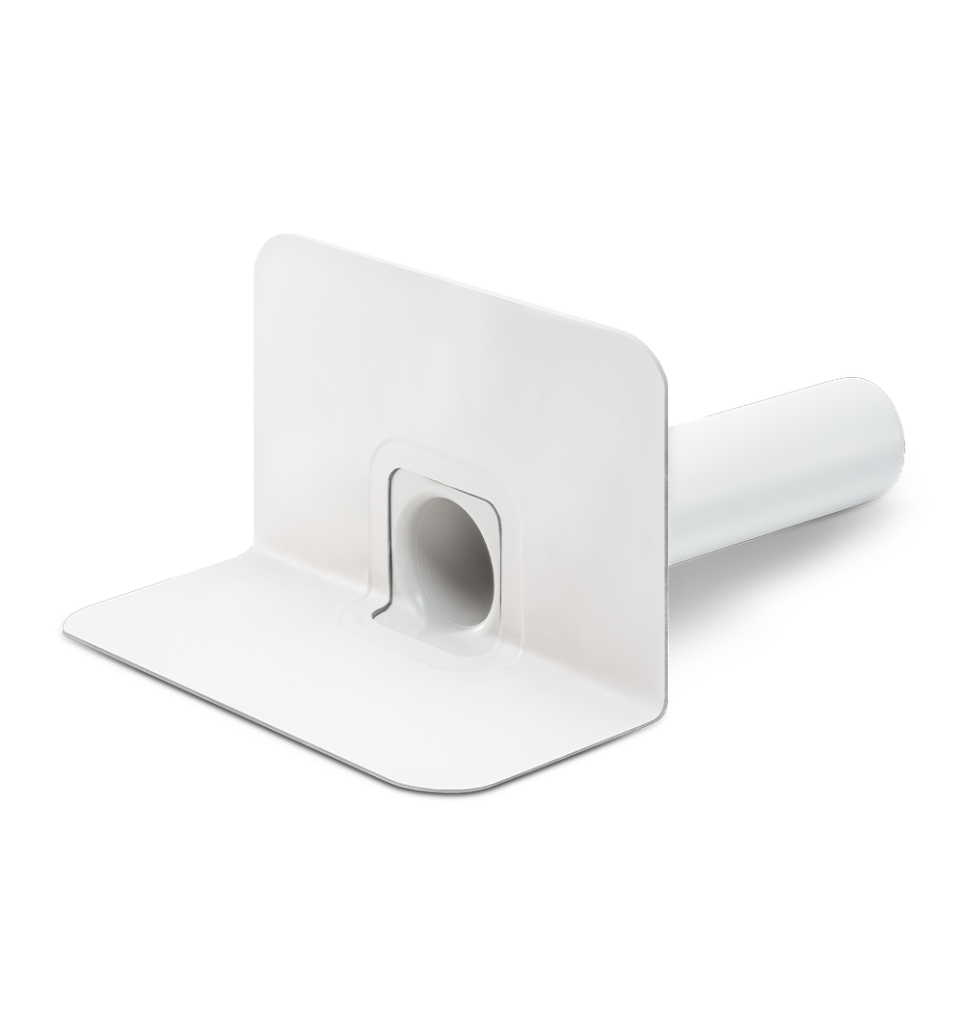

Speier, rund Nexo Fix

Scupper Nexo Fix, round

World first: Nexo Fix

Our drains, spouts, emergency overflows and flat roof ventilators are now available with an industrially manufactured, firmly welded foil connection. No clamping or gluing, the foil connection meets all manufacturer specifications. The easy handling saves time and work. There is no need to manually weld the flange to the sealing film. All foil connections come with a 10 cm wide material overhang, which enables professional welding to the surrounding roof foil. The foil connection firmly welded to the base body guarantees maximum safety. That’s how you do it.

Available now!

Contact us today

Function

Molding for horizontal drainage through the parapet. Installation with connection to a pipe system for water drainage or free jet. When installing for emergency drainage, the exact installation point must be taken into account depending on the water height.

Material

Versions PVC and FPO/PP with welded connection sleeve for easy connection to the appropriate roofing membrane. The material of the ground body is weatherproof modified: UV-stabilized, against heat degradation and oxidative aging as well as cold impact resistant.

Versions PVC

Material Technical information
PVC
similar to RAL 7035,
Light grey		 Pipe length 480 mm D 50 mm
(DN 50)
D 63 mm
D 75 mm
(DN 70)
D 90 mm
D 110 mm
(DN 100)

Pipe inclination 5°.
Special lengths available on request.
Attention: The processing instructions of the roofing membrane manufacturer must be adhered to; Materials and used material compounds may be subject to change.
Also available with a matching rolling ring.
Attention: Additional charge for rolling ring.

Nexo Fix versions

with welded connection sleeve, PVC similar to RAL 7035, Light grey

Versions FPO/PP

Material Technical information
FPO/PP
similar to RAL 7044,
Silk grey		 Pipe length 480 mm D 50 mm
(DN 50)
D 63 mm
D 75 mm
(DN 70)
D 90 mm
D 110 mm
(DN 100)

Pipe inclination 5°.
Special lengths available on request
Attention: The processing instructions of the roofing membrane manufacturer must be adhered to; Materials and used material compounds may be subject to change.
Also available with a matching rolling ring.
Attention: Additional charge for rolling ring.

Nexo Fix versions

Manufacturer Foil type
Bauder Thermoplan T
SIKA Sarnafil TS77
Soprema FLAGON Premio



Drainage performance litre/sec:

LGA-certified characteristics

Diameter Accumulation height
35 mm 65 mm
D 50 mm
(DN 50)		 0.51 1.31
D 75 mm
(DN 70)		 0.65 1.65
D 90 mm 0.65 1.90
D 110 mm
(DN 100)		 1.00 2.65
D 125 mm
(DN 125)		 1.00 2.80

Examples

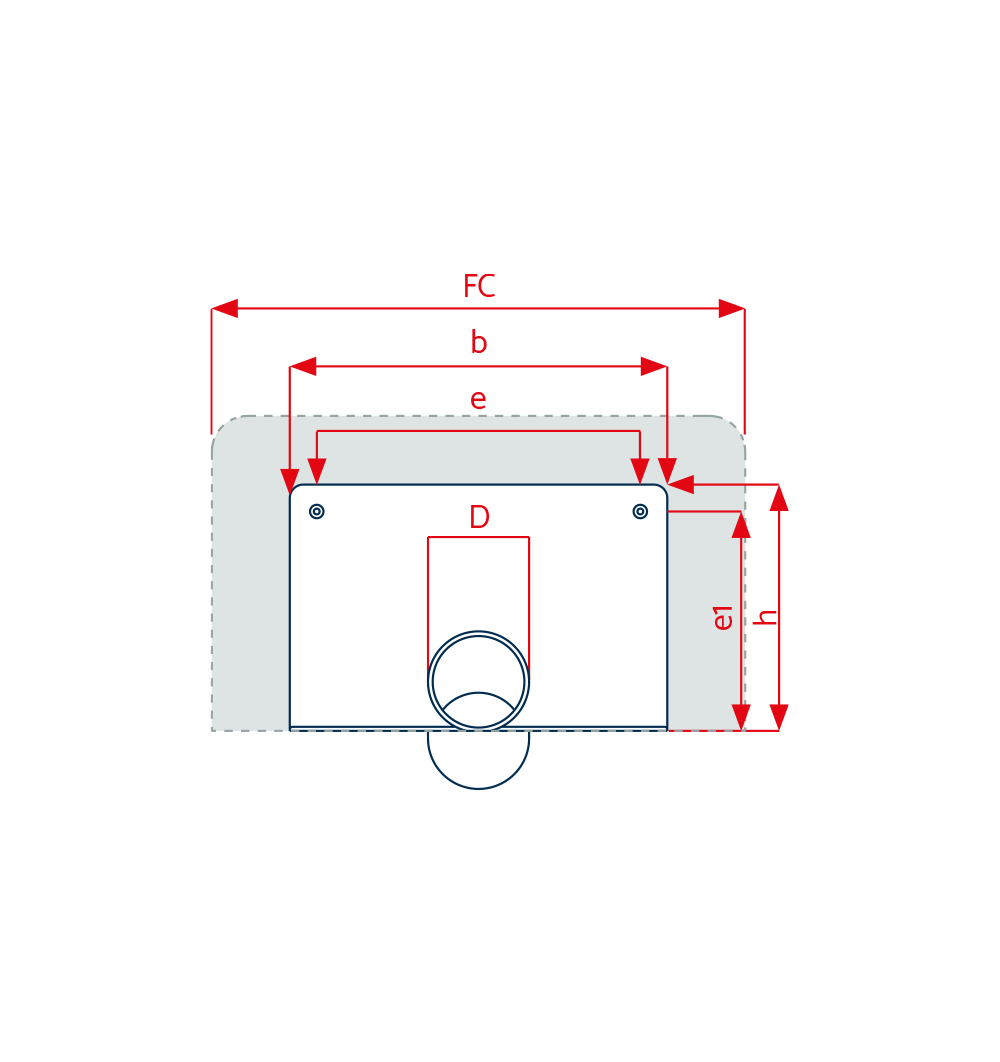

Technical drawings

Technical data
D1 50 / 63 / 75 / 90 / 110 / 125 mm
l 480
a 112
b 280
h 186
e 240
e1 20
e2 117
t 3
Foil connection (FA) L 494 x W 484

Downloads

Scupper Nexo Fix, round data sheet
Round scupper
Round scupper D 50
Round scupper D 56
Round scupper D 63
Round scupper D 75
Round scupper D 90
Round scupper D 110
Round scupper, tapered

Package units

Supplied in cartons, each containing 1 unit

Tailored to meet your requirements

Do you have any questions or require a customised version of this product? Talk to our team of experts! We’ll discuss the available options with you to see how we can help!

Contact

Molding for horizontal drainage through the parapet. Installation with connection to a pipe system for water drainage or free jet. When installing for emergency drainage, the exact installation point must be taken into account depending on the water height.

Versions PVC and FPO/PP with welded connection sleeve for easy connection to the appropriate roofing membrane. The material of the ground body is weatherproof modified: UV-stabilized, against heat degradation and oxidative aging as well as cold impact resistant.

Material Technical information
PVC
similar to RAL 7035,
Light grey		 Pipe length 480 mm D 50 mm
(DN 50)
D 63 mm
D 75 mm
(DN 70)
D 90 mm
D 110 mm
(DN 100)

Pipe inclination 5°.
Special lengths available on request.
Attention: The processing instructions of the roofing membrane manufacturer must be adhered to; Materials and used material compounds may be subject to change.
Also available with a matching rolling ring.
Attention: Additional charge for rolling ring.

with welded connection sleeve, PVC similar to RAL 7035, Light grey

Material Technical information
FPO/PP
similar to RAL 7044,
Silk grey		 Pipe length 480 mm D 50 mm
(DN 50)
D 63 mm
D 75 mm
(DN 70)
D 90 mm
D 110 mm
(DN 100)

Pipe inclination 5°.
Special lengths available on request
Attention: The processing instructions of the roofing membrane manufacturer must be adhered to; Materials and used material compounds may be subject to change.
Also available with a matching rolling ring.
Attention: Additional charge for rolling ring.

Manufacturer Foil type
Bauder Thermoplan T
SIKA Sarnafil TS77
Soprema FLAGON Premio



Diameter Accumulation height
35 mm 65 mm
D 50 mm
(DN 50)		 0.51 1.31
D 75 mm
(DN 70)		 0.65 1.65
D 90 mm 0.65 1.90
D 110 mm
(DN 100)		 1.00 2.65
D 125 mm
(DN 125)		 1.00 2.80
Technical data
D1 50 / 63 / 75 / 90 / 110 / 125 mm
l 480
a 112
b 280
h 186
e 240
e1 20
e2 117
t 3
Foil connection (FA) L 494 x W 484

Supplied in cartons, each containing 1 unit

Do you have any questions or require a customised version of this product? Talk to our team of experts! We’ll discuss the available options with you to see how we can help!

Contact

Matching accessories

Vapour barrier sheet for round and rectangular scuppers and emergency overflows

Vapour barrier sheet for round and rectangular scuppers and emergency overflows

Pre-configured sheet for vapour-tight routing of the pipe to the parapet

View product
Gravel basket Classic

Gravel basket Classic

Flow-optimised and LGA-certified filter attachment for reliable retention of coarse dirt particles, with centering cross for scupper, drains and gullies

View product
Lip seal for pipe connections

Lip seal for pipe connections

Seal for backwater-proof connection of the gully and extension element/scupper

View product

Vapour barrier sheet for round and rectangular scuppers and emergency overflows

Vapour barrier sheet for round and rectangular scuppers and emergency overflows
View product

Pre-configured sheet for vapour-tight routing of the pipe to the parapet

Gravel basket Classic

Gravel basket Classic
View product

Flow-optimised and LGA-certified filter attachment for reliable retention of coarse dirt particles, with centering cross for scupper, drains and gullies

Lip seal for pipe connections

Lip seal for pipe connections
View product

Seal for backwater-proof connection of the gully and extension element/scupper
