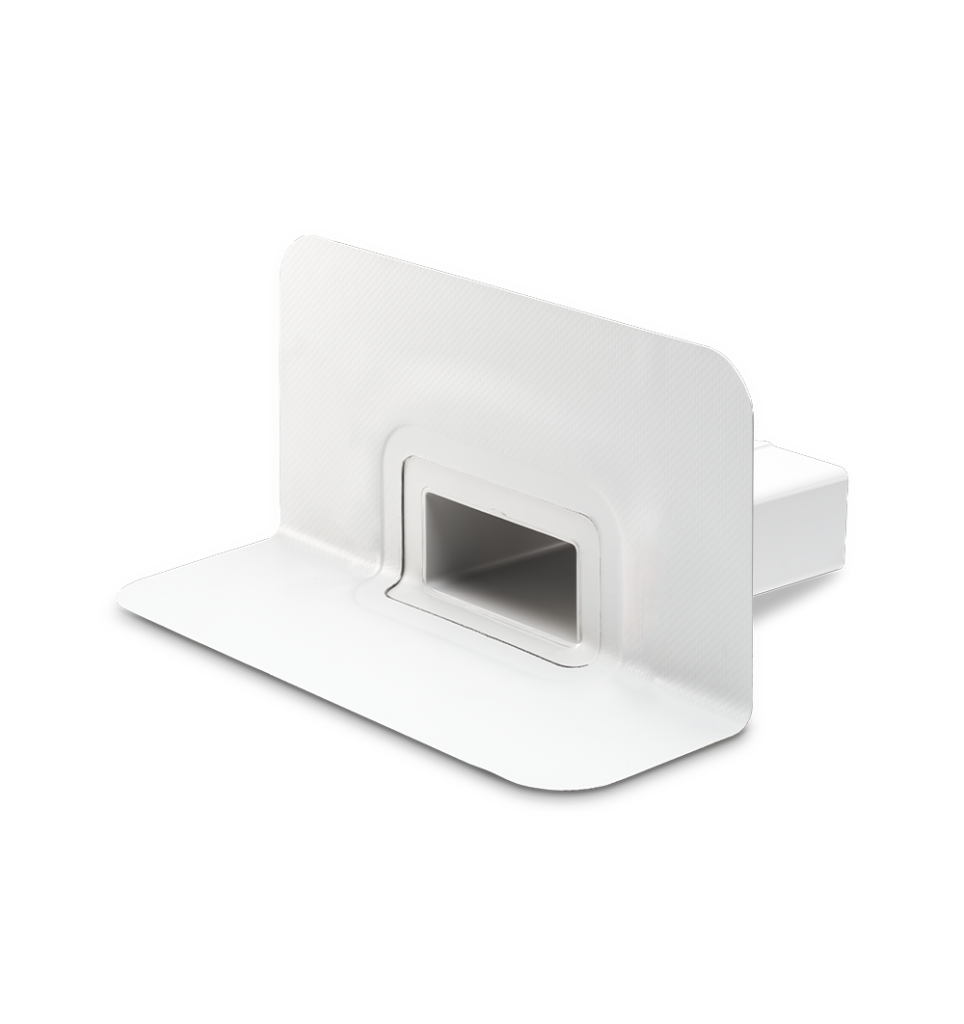

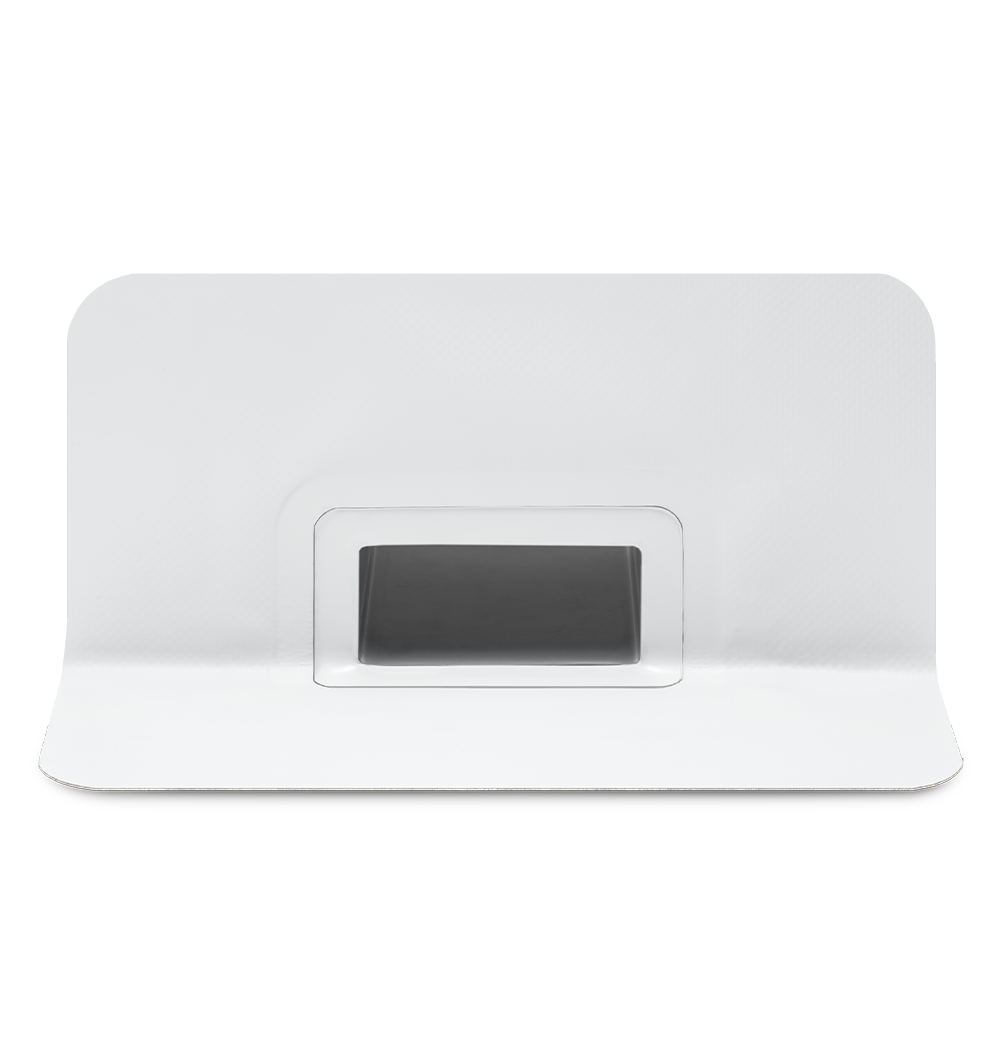

Speier, rechteckig Nexo Fix

Scupper Nexo Fix, rectangular

World first: Nexo Fix

Our drains, spouts, emergency overflows and flat roof ventilators are now available with an industrially manufactured, firmly welded foil connection. No clamping or gluing, the foil connection meets all manufacturer specifications. The easy handling saves time and work. There is no need to manually weld the flange to the sealing film. All foil connections come with a 10 cm wide material overhang, which enables professional welding to the surrounding roof foil. The foil connection firmly welded to the base body guarantees maximum safety. That’s how you do it.

Available now!

Contact us today

Function

Molding for horizontal drainage or emergency drainage through the parapet. When installing, the exact installation point must be taken into account depending on the water height.

Material

Versions PVC and FPO/PP with welded connection sleeve for easy connection to the appropriate roofing membrane. The material of the ground body is weatherproof modified: UV-stabilized, against heat degradation and oxidative aging as well as cold impact resistant.

Versions PVC

Material Duct = W x H x L mm
PVC
similar to RAL 7047,
Telegrey 4		 120 x 60 x L 300
120 x 60 x L 600
180 x 80 x L 300
180 x 80 x L 600
300 x 80 x L 300
300 x 80 x L 600
300 x 100 x L 300
300 x 100 x L 600
500 x 100 x L 300
500 x 100 x L 600
600 x 100 x L 300
600 x 100 x L 600

Pipe inclination 5°.
Special sizes available on request.
Custom designs are non-returnable.
Attention: The processing instructions of the roofing membrane manufacturer must be adhered to; Materials and used material compounds may be subject to change.
Also available with a matching rolling ring.
Attention: Additional charge for rolling ring.

Nexo Fix versions

with welded connection sleeve, PVC similar to RAL 7047, Telegrey 4

Versions FPO/PP

Material Duct = W x H x L mm
FPO/PP
similar to RAL 7044,
Silk grey		 120 x 60 x L 300
120 x 60 x L 600
180 x 80 x L 300
180 x 80 x L 600
300 x 80 x L 300
300 x 80 x L 600
300 x 100 x L 300
300 x 100 x L 600
500 x 100 x L 300
500 x 100 x L 600
600 x 100 x L 300
600 x 100 x L 600

Pipe inclination 5°.
Special sizes available on request.
Custom designs are non-returnable.
Attention: The processing instructions of the roofing membrane manufacturer must be adhered to; Materials and used material compounds may be subject to change.
Also available with a matching rolling ring.
Attention: Additional charge for rolling ring.

Nexo Fix versions

Manufacturer Foil type
Bauder Thermoplan T
SIKA Sarnafil TS77
Soprema FLAGON Premio

Drainage performance litre/sec:

LGA-certified characteristics

Duct = W x H mm Accumulation height
35 mm 65 mm
120 x 60 1.30 3.50
180 x 80 1.90 5.00
300 x 80 3.00 7.80
300 x 100 3.00 7.80
500 x 100 5.50 13.40
600 x 100 7.20 N/A

Examples

Technical drawings

Technical data
Duct = W x H mm b h c x y
120 x 60 120 60 300 153 100 mm
180 x 80 180 80 360 173 100
300 x 80 300 80 480 173 100
300 x 100 300 100 480 193 100
500 x 100 500 100 680 193 100
600 x 100 600 100 780 193 100
Foil connection (FA)
Sizes
(L x W)
in mm		 440 x
500		 460 x
560		 460 x
680		 480 x
680		 460 x
880		 480 x
980
Sizes
for		 120 x
60 x
300/
600		 180 x
80 x
300/
600		 300 x
80 x
300/
600		 300 x
100 x
300/
600		 500 x
100 x
300/
600		 600 x
100 x
300/
600

Downloads

Scupper Nexo Fix, rectangular data sheet
Tender specification for drainage/emergency drainage, rectangular

Package units

Supplied in cartons, each containing 1 unit

Tailored to meet your requirements

Do you have any questions or require a customised version of this product? Talk to our team of experts! We’ll discuss the available options with you to see how we can help!

Contact

Molding for horizontal drainage or emergency drainage through the parapet. When installing, the exact installation point must be taken into account depending on the water height.

Versions PVC and FPO/PP with welded connection sleeve for easy connection to the appropriate roofing membrane. The material of the ground body is weatherproof modified: UV-stabilized, against heat degradation and oxidative aging as well as cold impact resistant.

Material Duct = W x H x L mm
PVC
similar to RAL 7047,
Telegrey 4		 120 x 60 x L 300
120 x 60 x L 600
180 x 80 x L 300
180 x 80 x L 600
300 x 80 x L 300
300 x 80 x L 600
300 x 100 x L 300
300 x 100 x L 600
500 x 100 x L 300
500 x 100 x L 600
600 x 100 x L 300
600 x 100 x L 600

Pipe inclination 5°.
Special sizes available on request.
Custom designs are non-returnable.
Attention: The processing instructions of the roofing membrane manufacturer must be adhered to; Materials and used material compounds may be subject to change.
Also available with a matching rolling ring.
Attention: Additional charge for rolling ring.

with welded connection sleeve, PVC similar to RAL 7047, Telegrey 4

Material Duct = W x H x L mm
FPO/PP
similar to RAL 7044,
Silk grey		 120 x 60 x L 300
120 x 60 x L 600
180 x 80 x L 300
180 x 80 x L 600
300 x 80 x L 300
300 x 80 x L 600
300 x 100 x L 300
300 x 100 x L 600
500 x 100 x L 300
500 x 100 x L 600
600 x 100 x L 300
600 x 100 x L 600

Pipe inclination 5°.
Special sizes available on request.
Custom designs are non-returnable.
Attention: The processing instructions of the roofing membrane manufacturer must be adhered to; Materials and used material compounds may be subject to change.
Also available with a matching rolling ring.
Attention: Additional charge for rolling ring.

Manufacturer Foil type
Bauder Thermoplan T
SIKA Sarnafil TS77
Soprema FLAGON Premio
Duct = W x H mm Accumulation height
35 mm 65 mm
120 x 60 1.30 3.50
180 x 80 1.90 5.00
300 x 80 3.00 7.80
300 x 100 3.00 7.80
500 x 100 5.50 13.40
600 x 100 7.20 N/A
Technical data
Duct = W x H mm b h c x y
120 x 60 120 60 300 153 100 mm
180 x 80 180 80 360 173 100
300 x 80 300 80 480 173 100
300 x 100 300 100 480 193 100
500 x 100 500 100 680 193 100
600 x 100 600 100 780 193 100
Foil connection (FA)
Sizes
(L x W)
in mm		 440 x
500		 460 x
560		 460 x
680		 480 x
680		 460 x
880		 480 x
980
Sizes
for		 120 x
60 x
300/
600		 180 x
80 x
300/
600		 300 x
80 x
300/
600		 300 x
100 x
300/
600		 500 x
100 x
300/
600		 600 x
100 x
300/
600

Supplied in cartons, each containing 1 unit

Do you have any questions or require a customised version of this product? Talk to our team of experts! We’ll discuss the available options with you to see how we can help!

Contact

Matching accessories

Vapour barrier sheet for round and rectangular scuppers and emergency overflows

Vapour barrier sheet for round and rectangular scuppers and emergency overflows

Pre-configured sheet for vapour-tight routing of the pipe to the parapet

View product

Vapour barrier sheet for round and rectangular scuppers and emergency overflows

Vapour barrier sheet for round and rectangular scuppers and emergency overflows
View product

Pre-configured sheet for vapour-tight routing of the pipe to the parapet
