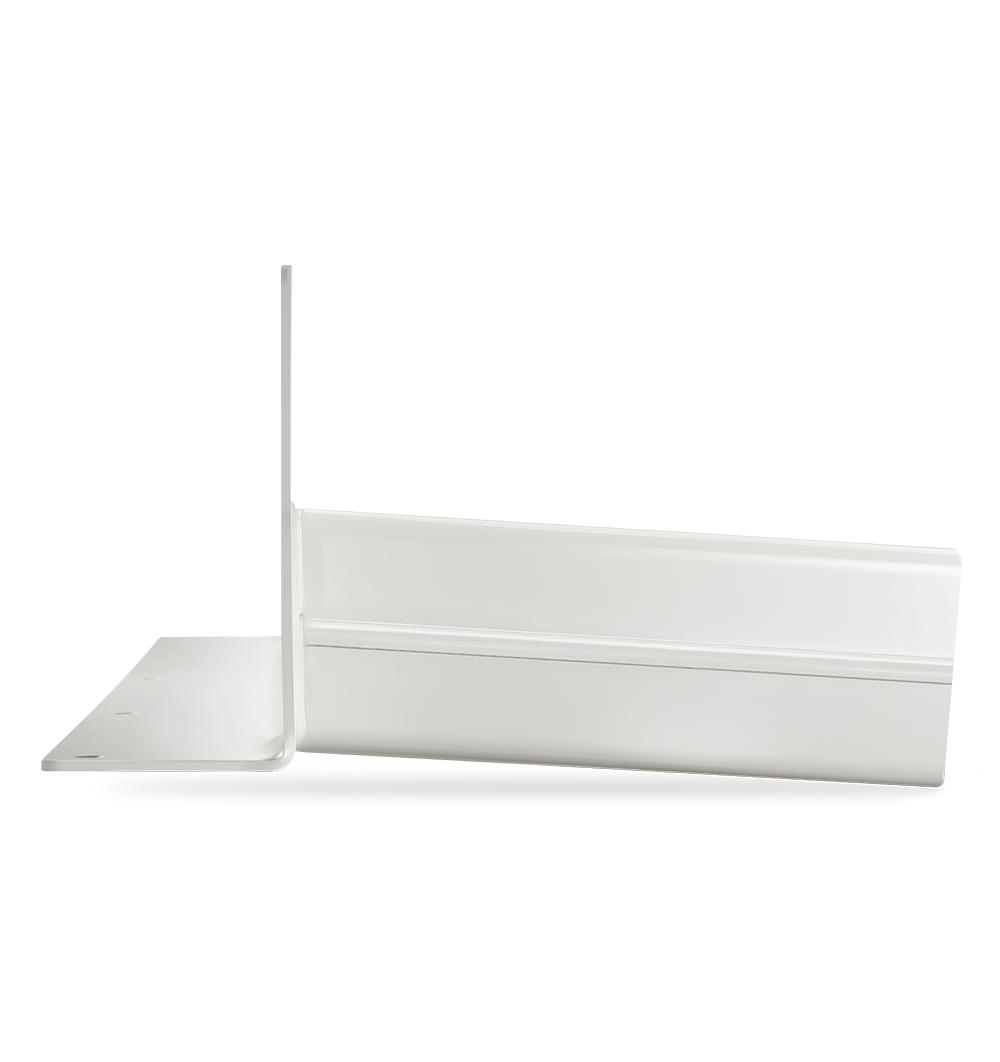

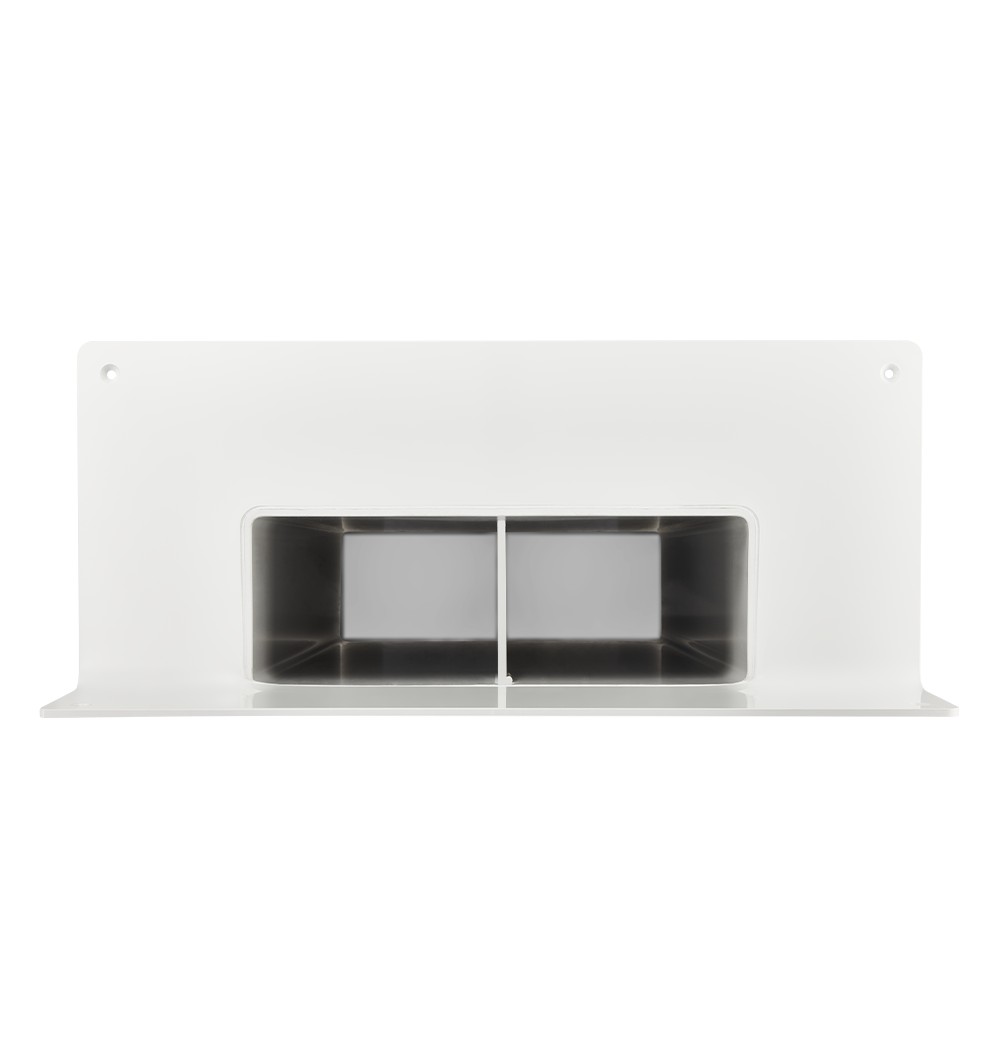

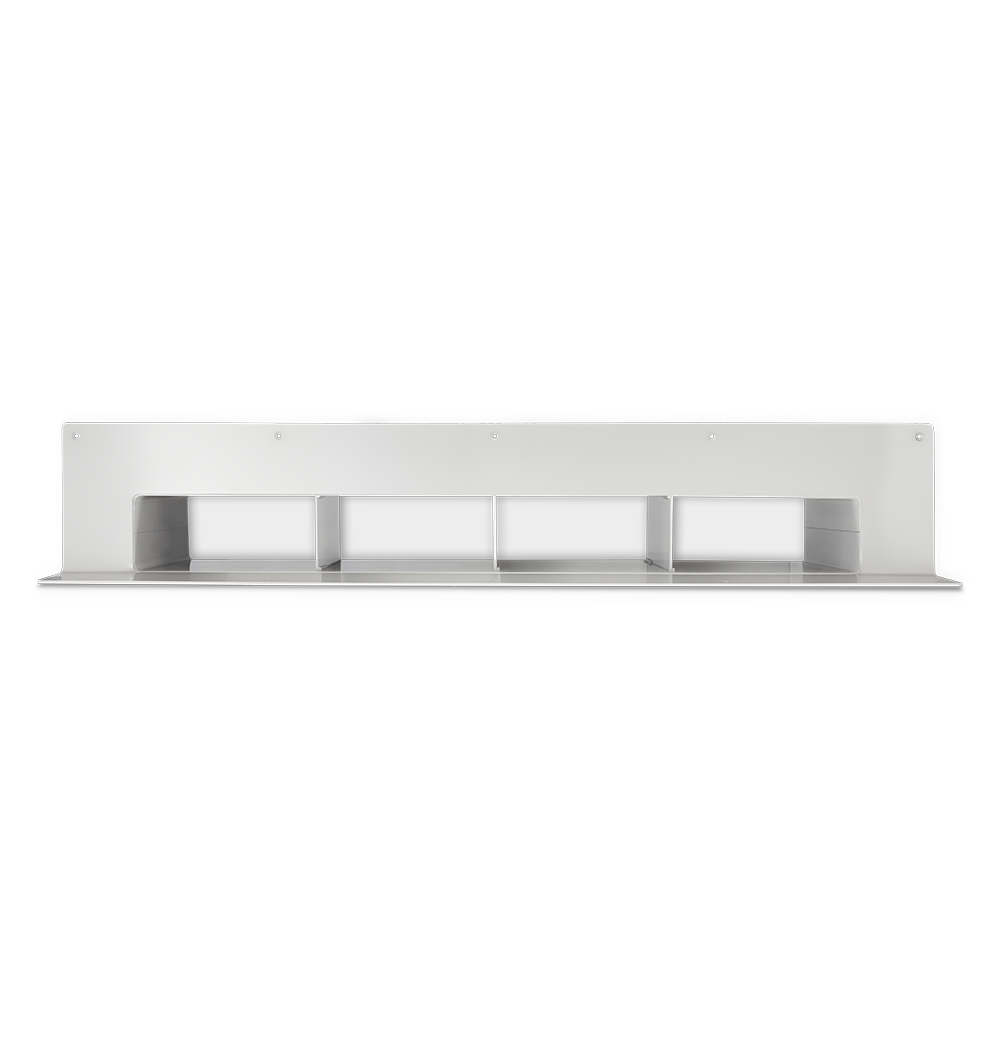

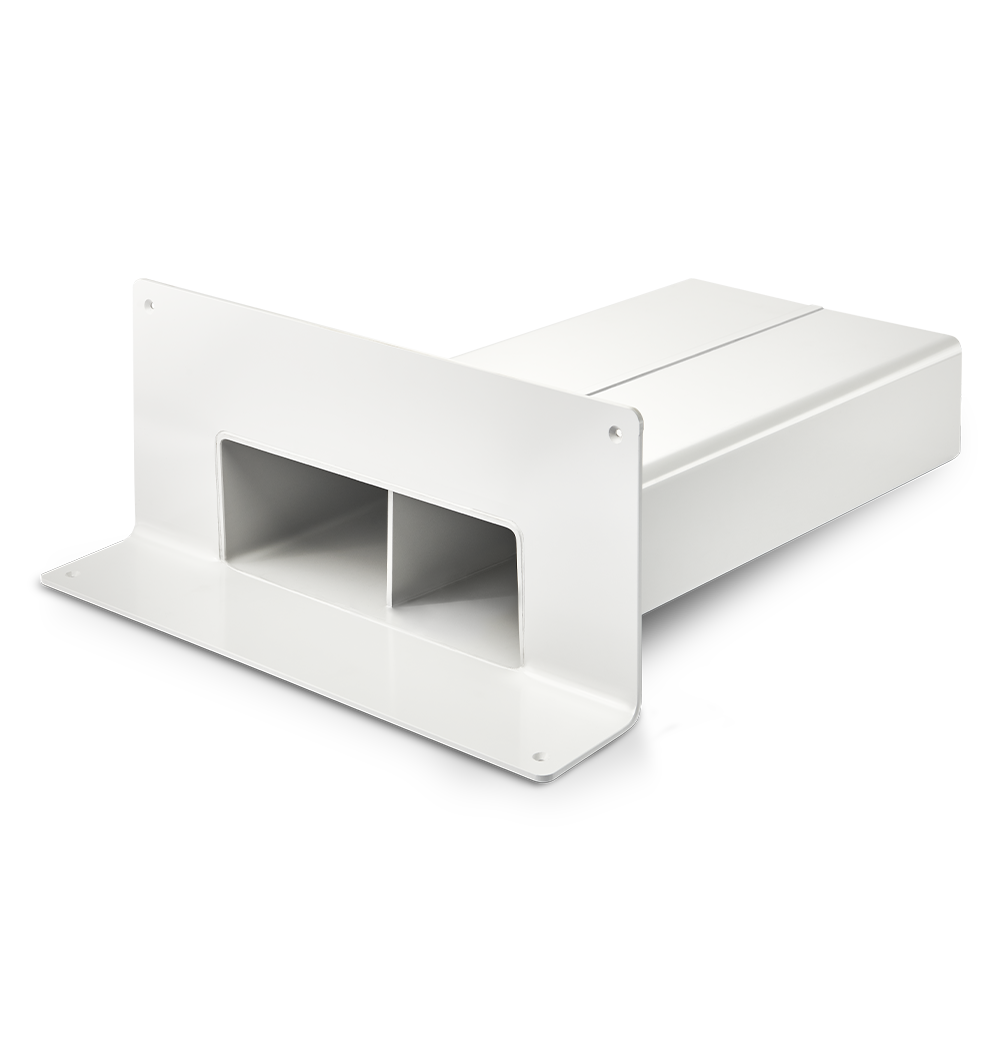

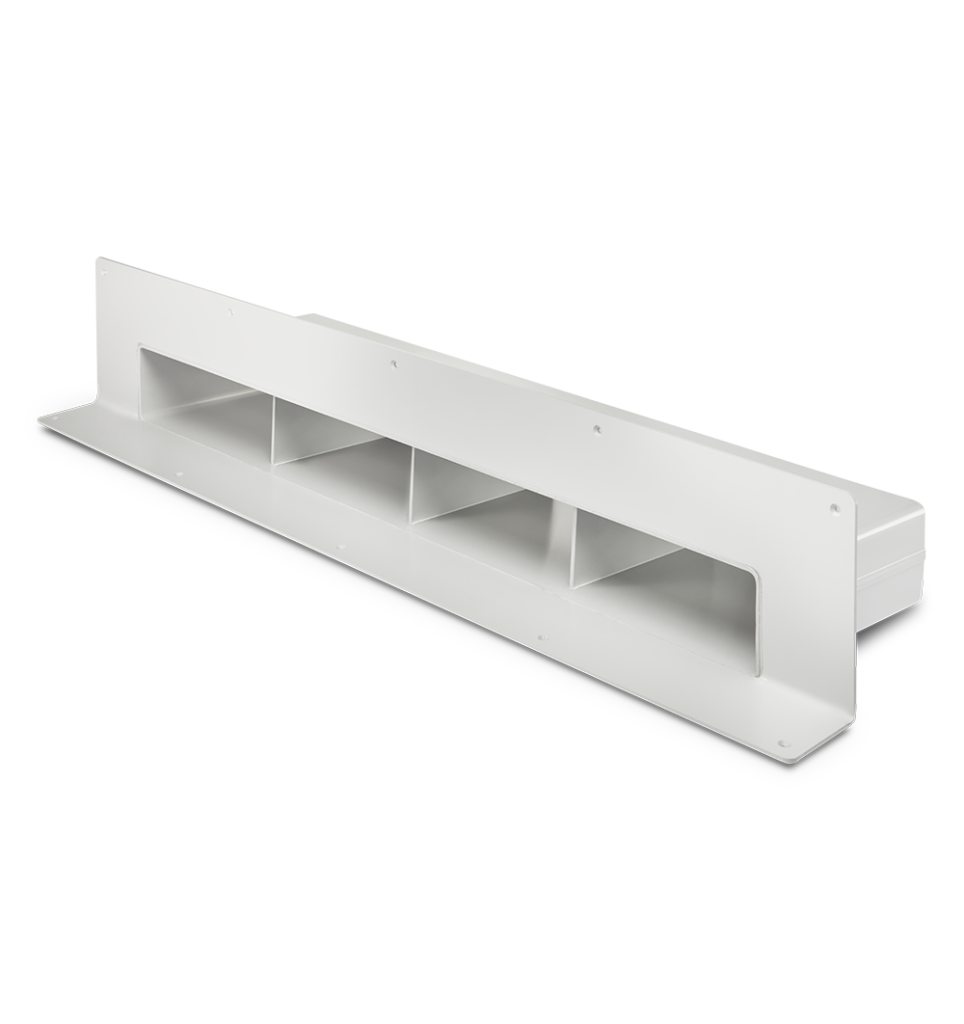

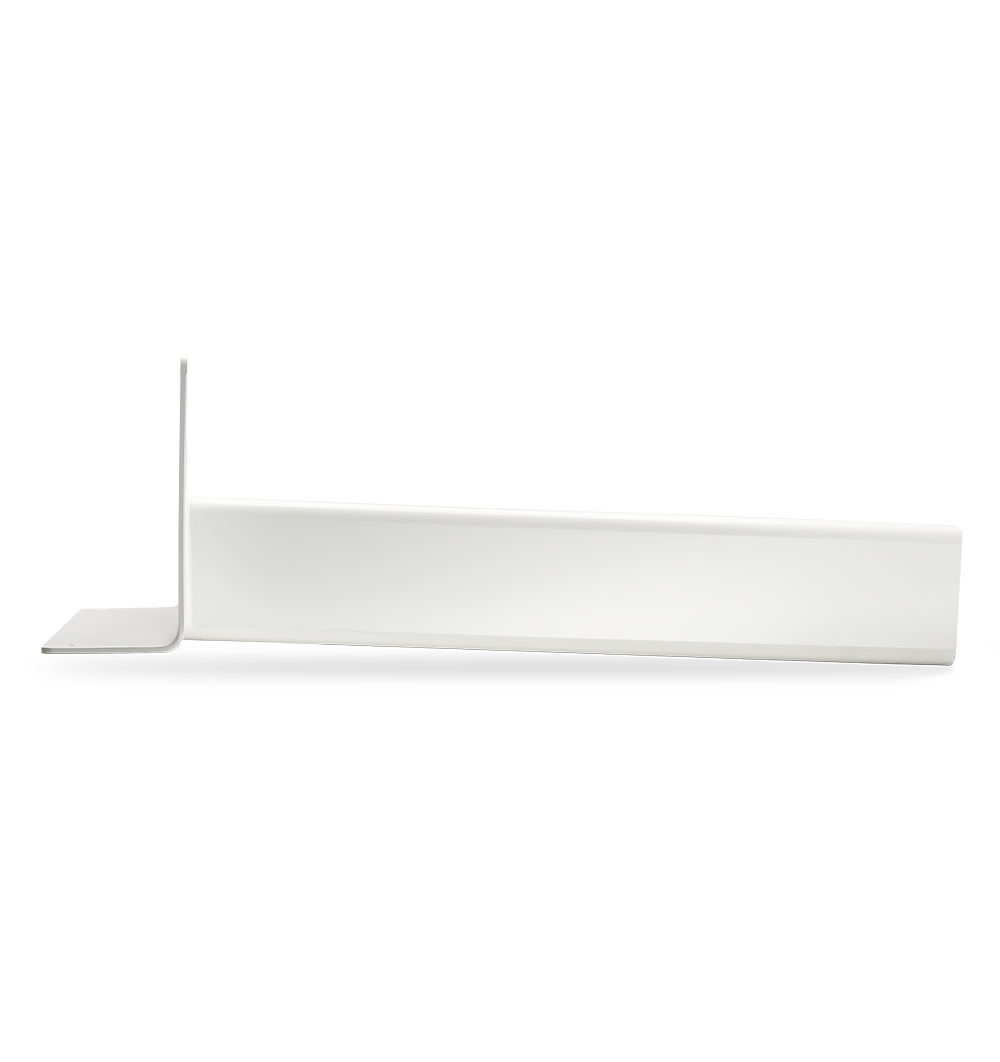

Scupper, rectangular
Quick or emergency drainage through the parapet with full capacity from the outset
Function
Moulded part for horizontal drainage or emergency drainage through the parapet wall. When installing the emergency overflow, the precise installation point depends on the water level.
Material
PVC and FPO/PP models for connection to the respective matching roofing membrane material type. Perform connection for bituminous waterproofing using liquid plastic. The materials are modified to be weather-resistant: UV-stabilised, against heat degradation and oxidative ageing as well as resistant to cold impact.
Versions PVC
| Material | Duct = W x H x L mm |
|---|---|
| PVC similar to RAL 7047, Telegrey 4 |
120 x 60 x L 300 |
| 120 x 60 x L 600 | |
| 180 x 80 x L 300 | |
| 180 x 80 x L 600 | |
| 300 x 80 x L 300 | |
| 300 x 80 x L 600 | |
| 300 x 100 x L 300 | |
| 300 x 100 x L 600 | |
| 500 x 100 x L 300 | |
| 500 x 100 x L 600 | |
| 600 x 100 x L 300 | |
| 600 x 100 x L 600 | |
| 750 x 100 x L 300 | |
| 750 x 100 x L 600 | |
| 1000 x 100 x L 300 | |
| 1000 x 100 x L 600 |
Pipe inclination 5°.
Special sizes available on request.
Alternatively also available with a retaining ring in the desierd height.
Custom designs are non-returnable.
Attention: The processing instructions of the roofing membrane manufacturer must be adhered to; Materials and used material compounds may be subject to change.
Versions FPO/PP
| Material | Duct = W x H x L mm |
|---|---|
| FPO/PP similar to RAL 7044, Silk grey |
120 x 60 x L 300 |
| 120 x 60 x L 600 | |
| 180 x 80 x L 300 | |
| 180 x 80 x L 600 | |
| 300 x 80 x L 300 | |
| 300 x 80 x L 600 | |
| 300 x 100 x L 300 | |
| 300 x 100 x L 600 | |
| 500 x 100 x L 300 | |
| 500 x 100 x L 600 | |
| 600 x 100 x L 300 | |
| 600 x 100 x L 600 | |
| 750 x 100 x L 300 | |
| 750 x 100 x L 600 | |
| 1.000 x 100 x L 300 | |
| 1.000 x 100 x L 600 |
Pipe inclination 5°.
Special sizes available on request.
Also available in PE (PE-based roof membranes) and BIT (sealedw ith liquid plastic).
Alternatively also available with a retaining ring in the desierd height.
Custom designs are non-returnable.
Attention: The processing instructions of the roofing membrane manufacturer must be adhered to; Materials and used material compounds may be subject to change.
Examples
Drainage performance litre/sec:
LGA-certified characteristics
| Duct = W x H mm | Accumulation height | |
|---|---|---|
| 35 mm | 65 mm | |
| 120 x 60 | 1.30 | 3.50 |
| 180 x 80 | 1.90 | 5.00 |
| 300 x 80 | 3.00 | 7.80 |
| 300 x 100 | 3.00 | 7.80 |
| 500 x 100 | 5.50 | 13.40 |
| 600 x 100 | 7.20 | N/A |
| 750 x 100 | 7.50 | 19.20 |
| 1000 x 100 | 12.60 | 29.40 |
Technical drawings
| Technical data | ||||||
|---|---|---|---|---|---|---|
| Duct = W x H mm | b | h | c | x | y | |
| 120 x 60 | 120 | 60 | 300 | 153 | 100 | mm |
| 180 x 80 | 180 | 80 | 360 | 173 | 100 | |
| 300 x 80 | 300 | 80 | 480 | 173 | 100 | |
| 300 x 100 | 300 | 100 | 480 | 193 | 100 | |
| 500 x 100 | 500 | 100 | 680 | 193 | 100 | |
| 600 x 100 | 600 | 100 | 780 | 193 | 100 | |
| 750 x 100 | 750 | 100 | 930 | 193 | 100 | |
| 1000 x 100 | 1000 | 100 | 1180 | 193 | 100 | |
Downloads
Package units
Supplied in cartons, each containing 1 unit
Tailored to meet your requirements
Do you have any questions or require a customised version of this product? Talk to our team of experts! We’ll discuss the available options with you to see how we can help!
Function
Moulded part for horizontal drainage or emergency drainage through the parapet wall. When installing the emergency overflow, the precise installation point depends on the water level.
Material
PVC and FPO/PP models for connection to the respective matching roofing membrane material type. Perform connection for bituminous waterproofing using liquid plastic. The materials are modified to be weather-resistant: UV-stabilised, against heat degradation and oxidative ageing as well as resistant to cold impact.
Versions PVC
| Material | Duct = W x H x L mm |
|---|---|
| PVC similar to RAL 7047, Telegrey 4 |
120 x 60 x L 300 |
| 120 x 60 x L 600 | |
| 180 x 80 x L 300 | |
| 180 x 80 x L 600 | |
| 300 x 80 x L 300 | |
| 300 x 80 x L 600 | |
| 300 x 100 x L 300 | |
| 300 x 100 x L 600 | |
| 500 x 100 x L 300 | |
| 500 x 100 x L 600 | |
| 600 x 100 x L 300 | |
| 600 x 100 x L 600 | |
| 750 x 100 x L 300 | |
| 750 x 100 x L 600 | |
| 1000 x 100 x L 300 | |
| 1000 x 100 x L 600 |
Pipe inclination 5°.
Special sizes available on request.
Alternatively also available with a retaining ring in the desierd height.
Custom designs are non-returnable.
Attention: The processing instructions of the roofing membrane manufacturer must be adhered to; Materials and used material compounds may be subject to change.
Versions FPO/PP
| Material | Duct = W x H x L mm |
|---|---|
| FPO/PP similar to RAL 7044, Silk grey |
120 x 60 x L 300 |
| 120 x 60 x L 600 | |
| 180 x 80 x L 300 | |
| 180 x 80 x L 600 | |
| 300 x 80 x L 300 | |
| 300 x 80 x L 600 | |
| 300 x 100 x L 300 | |
| 300 x 100 x L 600 | |
| 500 x 100 x L 300 | |
| 500 x 100 x L 600 | |
| 600 x 100 x L 300 | |
| 600 x 100 x L 600 | |
| 750 x 100 x L 300 | |
| 750 x 100 x L 600 | |
| 1.000 x 100 x L 300 | |
| 1.000 x 100 x L 600 |
Pipe inclination 5°.
Special sizes available on request.
Also available in PE (PE-based roof membranes) and BIT (sealedw ith liquid plastic).
Alternatively also available with a retaining ring in the desierd height.
Custom designs are non-returnable.
Attention: The processing instructions of the roofing membrane manufacturer must be adhered to; Materials and used material compounds may be subject to change.
Examples
Drainage performance litre/sec:
LGA-certified characteristics
| Duct = W x H mm | Accumulation height | |
|---|---|---|
| 35 mm | 65 mm | |
| 120 x 60 | 1.30 | 3.50 |
| 180 x 80 | 1.90 | 5.00 |
| 300 x 80 | 3.00 | 7.80 |
| 300 x 100 | 3.00 | 7.80 |
| 500 x 100 | 5.50 | 13.40 |
| 600 x 100 | 7.20 | N/A |
| 750 x 100 | 7.50 | 19.20 |
| 1000 x 100 | 12.60 | 29.40 |
Technical drawings
| Technical data | ||||||
|---|---|---|---|---|---|---|
| Duct = W x H mm | b | h | c | x | y | |
| 120 x 60 | 120 | 60 | 300 | 153 | 100 | mm |
| 180 x 80 | 180 | 80 | 360 | 173 | 100 | |
| 300 x 80 | 300 | 80 | 480 | 173 | 100 | |
| 300 x 100 | 300 | 100 | 480 | 193 | 100 | |
| 500 x 100 | 500 | 100 | 680 | 193 | 100 | |
| 600 x 100 | 600 | 100 | 780 | 193 | 100 | |
| 750 x 100 | 750 | 100 | 930 | 193 | 100 | |
| 1000 x 100 | 1000 | 100 | 1180 | 193 | 100 | |
Downloads
Package units
Supplied in cartons, each containing 1 unit
Tailored to meet your requirements
Do you have any questions or require a customised version of this product? Talk to our team of experts! We’ll discuss the available options with you to see how we can help!
