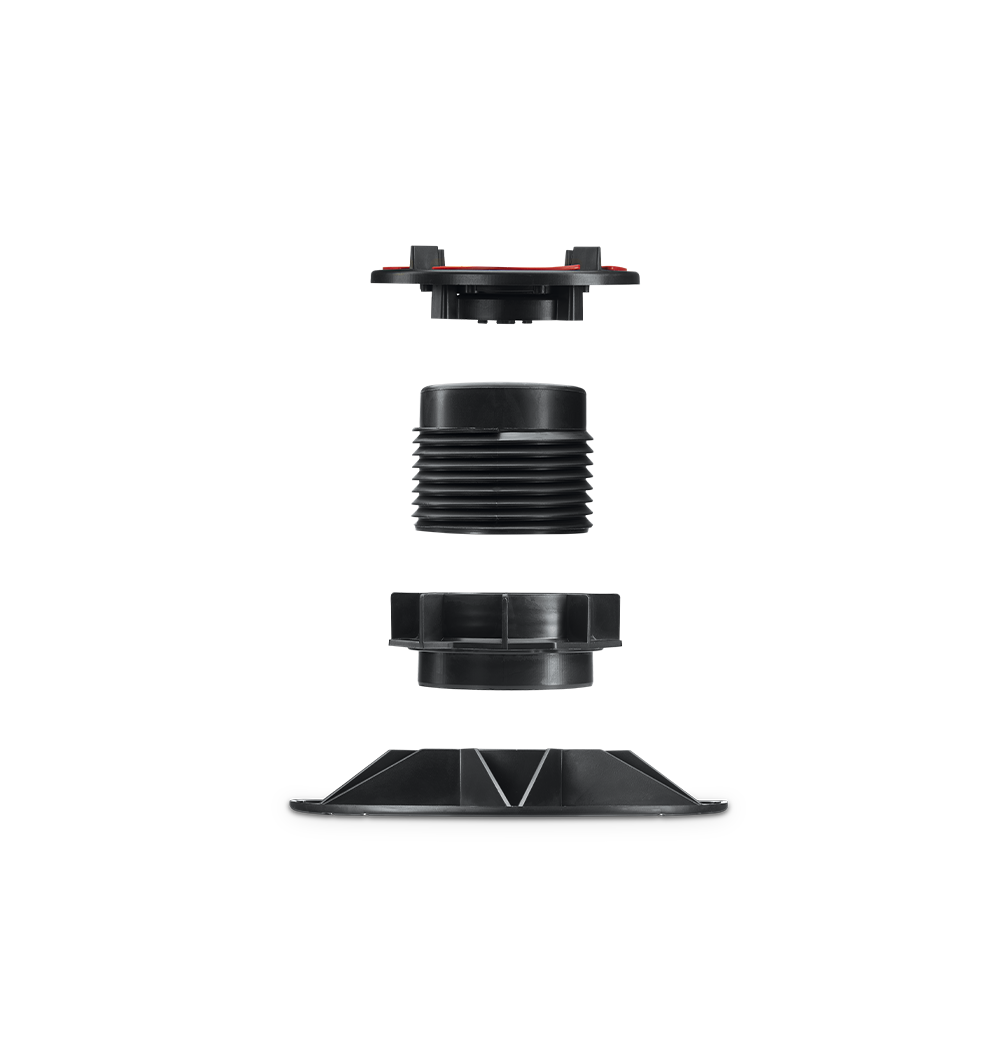

KALA terrace support system H-MAX MultiLevel
Freely height-adjustable terrace support system with inclinable head for quick and precise patio construction. Also suitable for uneven and/or sealed surfaces!
Function

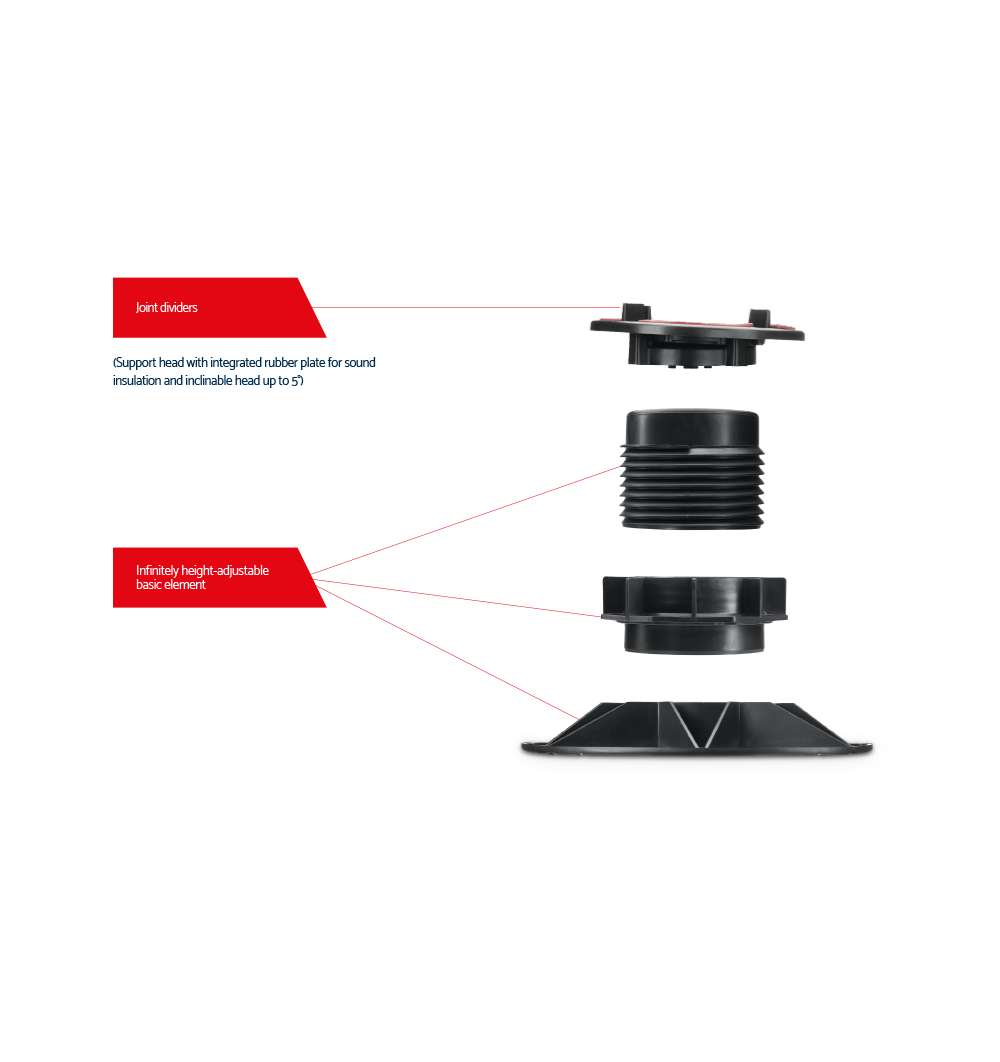

The H-MAX MultiLevel is our height-adjustable support system with an additional movable compensating head. It makes laying coverings of all kinds – whether wood, stone or ceramics – easy. The compensation head can also be moved by up to 5° to compensate for steep slopes and unevenness.
For direct installation on seals. Additional protective mats must be fitted in areas frequented by the public, such as entrances to public buildings, cafeterias, etc.
Material
The terrace support is made from black PPC: A weatherproof, UV-stabilized, low-temperature impact resistant and highly resilient plastic.
Versions
| Height | Diameter |
|---|---|
| 62 – 82 mm | Joint dividers 3 mm, Pressure disc D 200 mm |
| 77 – 112 mm | |
| 107 – 142 mm | |
| 137 – 227 mm |
Examples

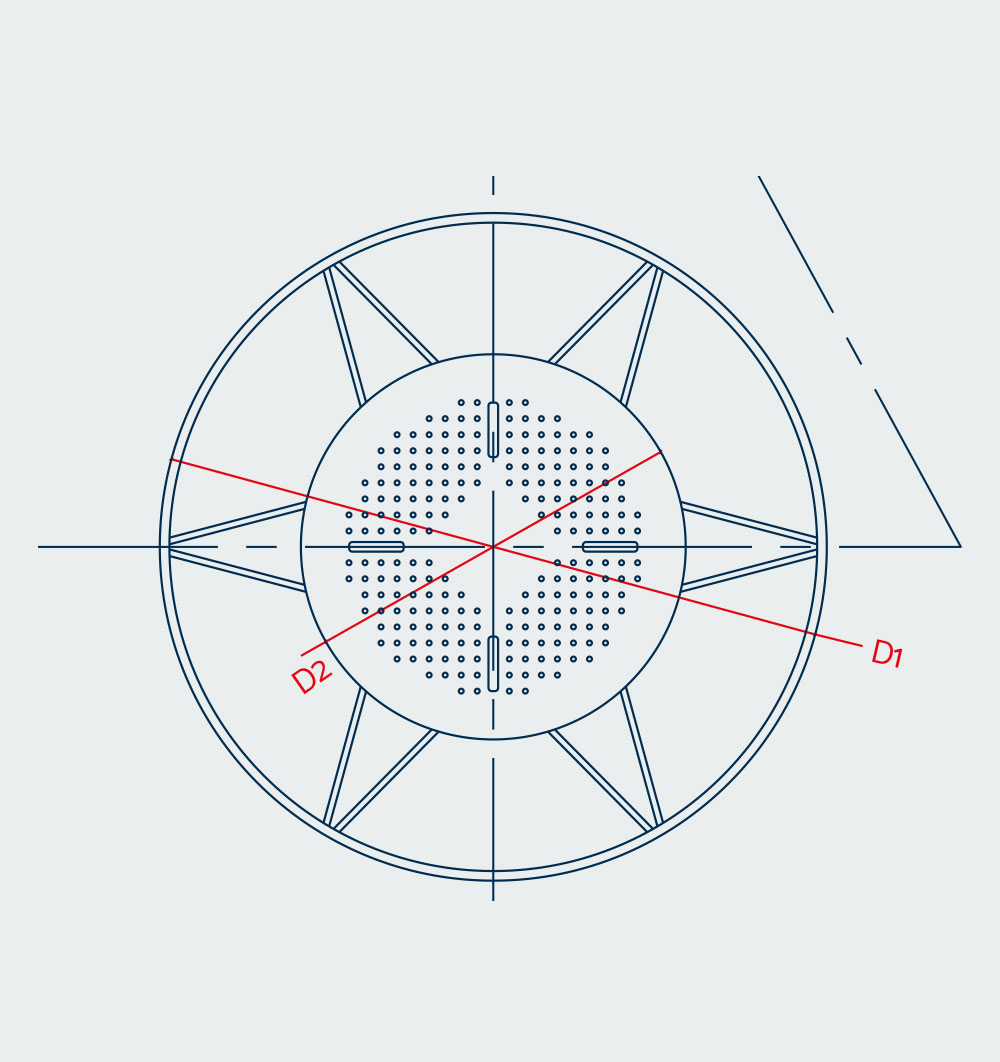

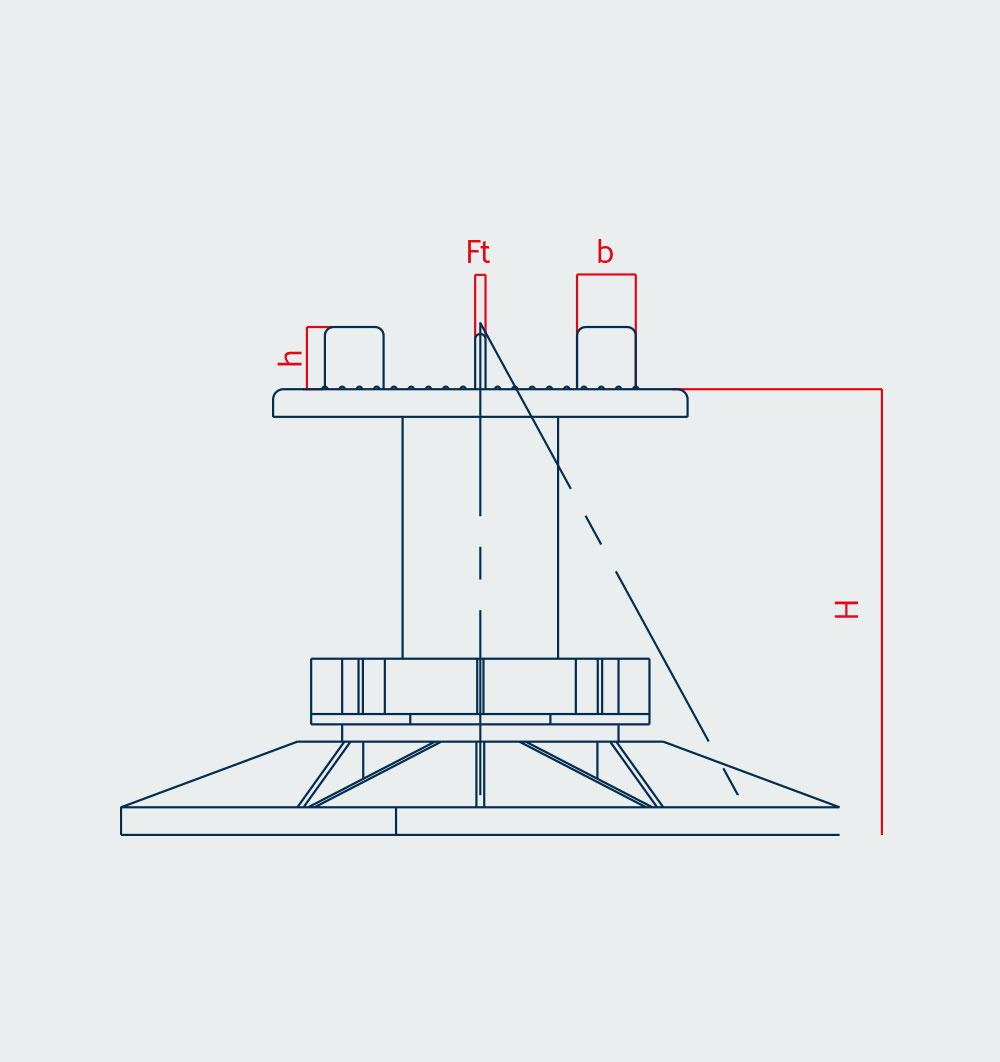

Technical drawings
| Technical data | ||||
|---|---|---|---|---|
| 62 – 82 mm | 77 – 112 mm | 107 – 142 mm | 137 – 227 mm | |
| D1 | 200 mm | 200 mm | 200 mm | 200 mm |
| D2 | 120 mm | 120 mm | 120 mm | 120 mm |
| H | 62 – 82 mm | 77 – 112 mm | 107 – 142 mm | 137 – 227 mm |
| h | 10 mm | 10 mm | 10 mm | 10 mm |
| b | 13 mm | 13 mm | 13 mm | 13 mm |
| Ft | 3 mm | 3 mm | 3 mm | 3 mm |
Downloads
Package units
Supplied in cartons, each containing 25 units
Tailored to meet your requirements
Do you have any questions or require a customised version of this product? Talk to our team of experts! We’ll discuss the available options with you to see how we can help!
Function
The H-MAX MultiLevel is our height-adjustable support system with an additional movable compensating head. It makes laying coverings of all kinds – whether wood, stone or ceramics – easy. The compensation head can also be moved by up to 5° to compensate for steep slopes and unevenness.
For direct installation on seals. Additional protective mats must be fitted in areas frequented by the public, such as entrances to public buildings, cafeterias, etc.
Material
The terrace support is made from black PPC: A weatherproof, UV-stabilized, low-temperature impact resistant and highly resilient plastic.
Versions
| Height | Diameter |
|---|---|
| 62 – 82 mm | Joint dividers 3 mm, Pressure disc D 200 mm |
| 77 – 112 mm | |
| 107 – 142 mm | |
| 137 – 227 mm |
Examples
Technical drawings
| Technical data | ||||
|---|---|---|---|---|
| 62 – 82 mm | 77 – 112 mm | 107 – 142 mm | 137 – 227 mm | |
| D1 | 200 mm | 200 mm | 200 mm | 200 mm |
| D2 | 120 mm | 120 mm | 120 mm | 120 mm |
| H | 62 – 82 mm | 77 – 112 mm | 107 – 142 mm | 137 – 227 mm |
| h | 10 mm | 10 mm | 10 mm | 10 mm |
| b | 13 mm | 13 mm | 13 mm | 13 mm |
| Ft | 3 mm | 3 mm | 3 mm | 3 mm |
Downloads
Package units
Supplied in cartons, each containing 25 units
Tailored to meet your requirements
Do you have any questions or require a customised version of this product? Talk to our team of experts! We’ll discuss the available options with you to see how we can help!
