Gooseneck/cable conduit
Attachment for routing cables through the roof system
Function
For optimal and straightforward energy feedthrough for flat roofs such as pipes or cables. Can be used as a Gooseneck/cable conduit for flat roof fans.
Material
- FPO/PP Black
- Low-temperature impact resistant plastic, weatherproof
Versions
| Material | Diameter |
|---|---|
| FPO/PP Black 1,2 |
D 75 mm (DN 70) |
| D 110 mm (DN 100) | |
| D 125 mm (DN 125) | |
| D 160 mm (DN 150) |
Attention: The processing instructions of the roofing membrane manufacturer must be adhered to; Materials and used material compounds may be subject to change.
1 Available as a cold or warm roof version. Price refers only to the sheet unit..
2 Attention: Please note that the technical dimensions and visual representation may differ from the illustration
Example

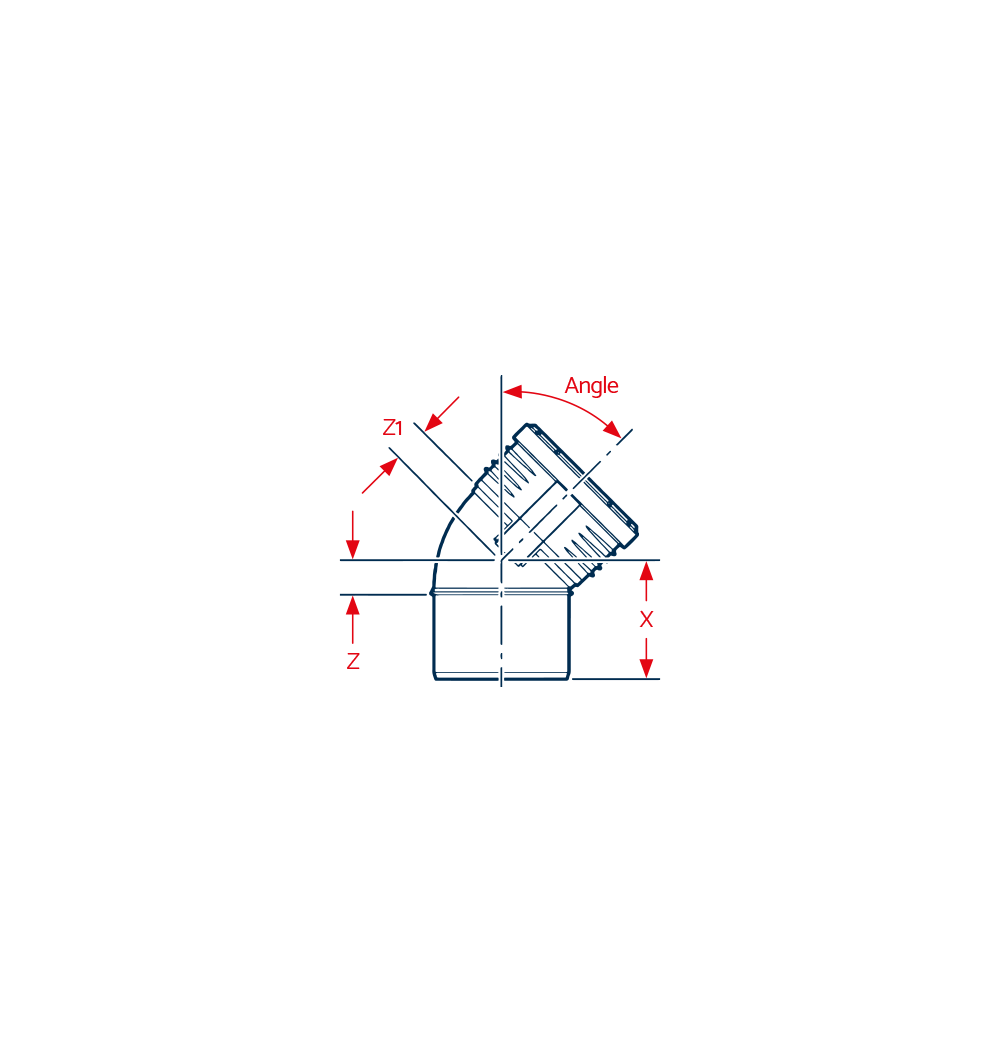

Technical drawings
| Technical data | ||||
|---|---|---|---|---|
| Diameter | Angle | X | Z | Z1 |
| D 75 mm (DN 70) | 45 ° | 7.6 cm | 2.0 cm | 2.1 cm |
| D 110 mm (DN 100) | 45 ° | 9.7 cm | 3.0 cm | 2.9 cm |
| D 125 mm (DN 125) | 45 ° | 10.7 cm | 3.3 cm | 3.3 cm |
| D 160 mm (DN 150) | 45 ° | 12.2 cm | 4.2 cm | 4.0 cm |
Package units
Supplied in cartons, PU 1 unit
Tailored to meet your requirements
Do you have any questions or require a customised version of this product? Talk to our team of experts! We’ll discuss the available options with you to see how we can help!
Function
For optimal and straightforward energy feedthrough for flat roofs such as pipes or cables. Can be used as a Gooseneck/cable conduit for flat roof fans.
Material
- FPO/PP Black
- Low-temperature impact resistant plastic, weatherproof
Versions
| Material | Diameter |
|---|---|
| FPO/PP Black 1,2 |
D 75 mm (DN 70) |
| D 110 mm (DN 100) | |
| D 125 mm (DN 125) | |
| D 160 mm (DN 150) |
Attention: The processing instructions of the roofing membrane manufacturer must be adhered to; Materials and used material compounds may be subject to change.
1 Available as a cold or warm roof version. Price refers only to the sheet unit..
2 Attention: Please note that the technical dimensions and visual representation may differ from the illustration
Example
Technical drawings
| Technical data | ||||
|---|---|---|---|---|
| Diameter | Angle | X | Z | Z1 |
| D 75 mm (DN 70) | 45 ° | 7.6 cm | 2.0 cm | 2.1 cm |
| D 110 mm (DN 100) | 45 ° | 9.7 cm | 3.0 cm | 2.9 cm |
| D 125 mm (DN 125) | 45 ° | 10.7 cm | 3.3 cm | 3.3 cm |
| D 160 mm (DN 150) | 45 ° | 12.2 cm | 4.2 cm | 4.0 cm |
Package units
Supplied in cartons, PU 1 unit
Tailored to meet your requirements
Do you have any questions or require a customised version of this product? Talk to our team of experts! We’ll discuss the available options with you to see how we can help!
