Emergency overflow, round
Extra drainage through the parapet, either free flow or through the pipe system
Function
Molded part for horizontal emergency drainage through the parapet. Installation with connection to a piping system for water discharge or free outflow. When installing, the exact installation point must be determined based on the water level.
Material
Variants in PVC, FPO/PP 1, and BIT for connection to the corresponding compatible material type of the roof membrane. The materials are modified to be weather-resistant: UV-stabilized, resistant to thermal degradation and oxidative aging, as well as impact-resistant in cold temperatures.
1 Alternatively available in PE (roof membranes based on PE)

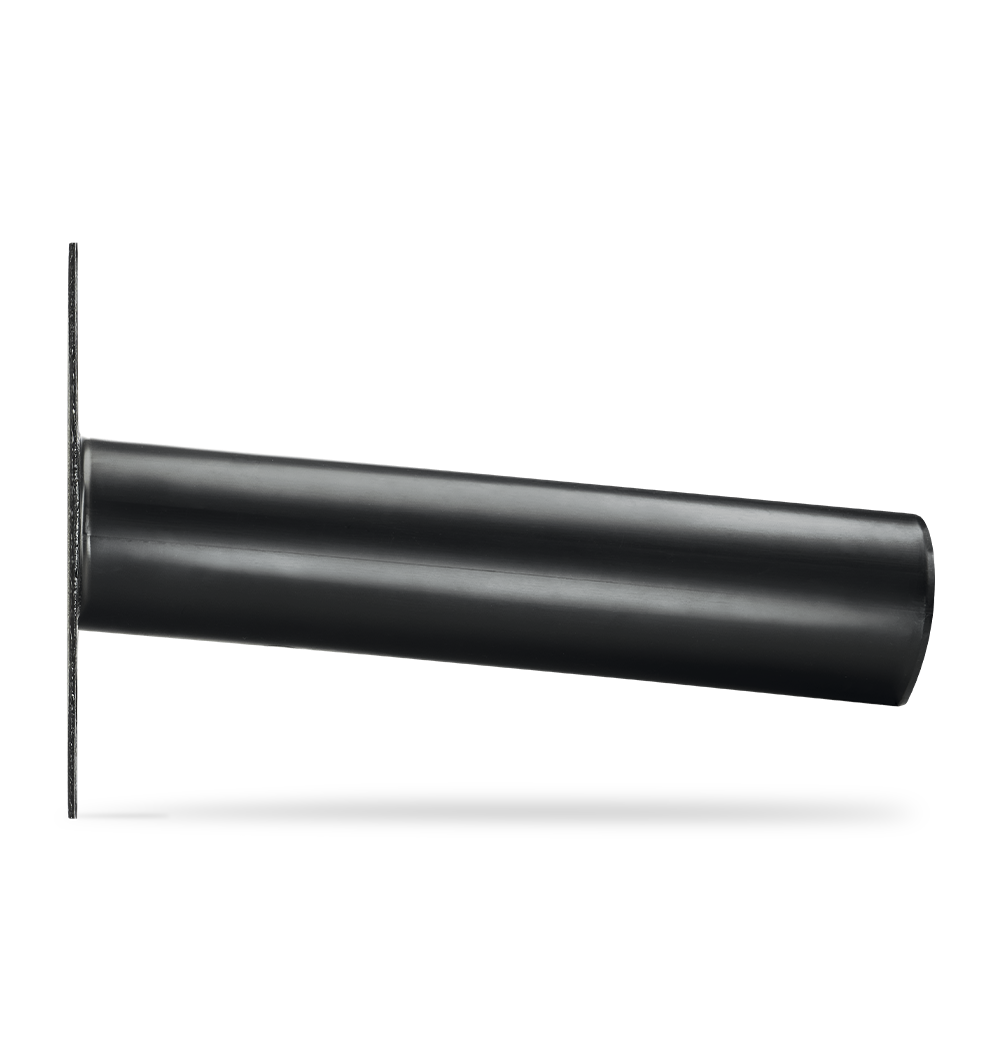

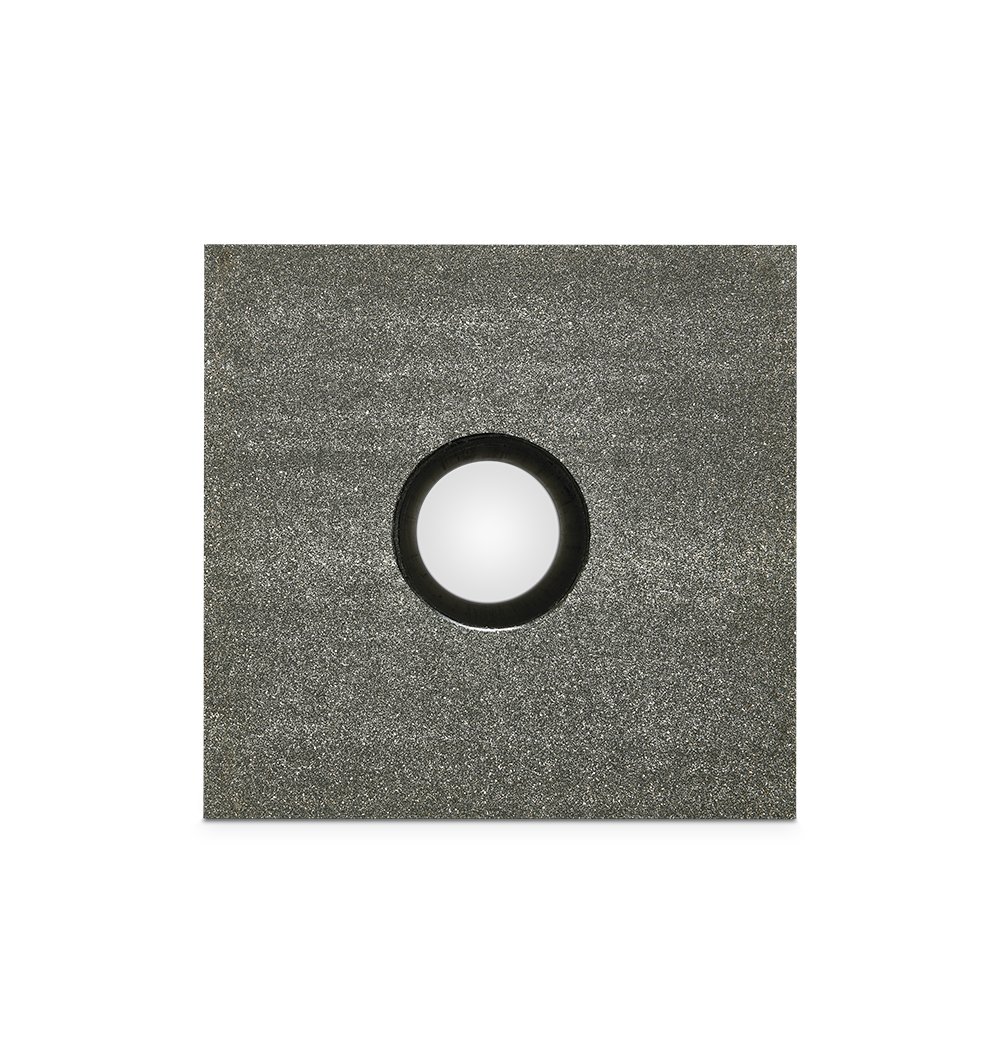

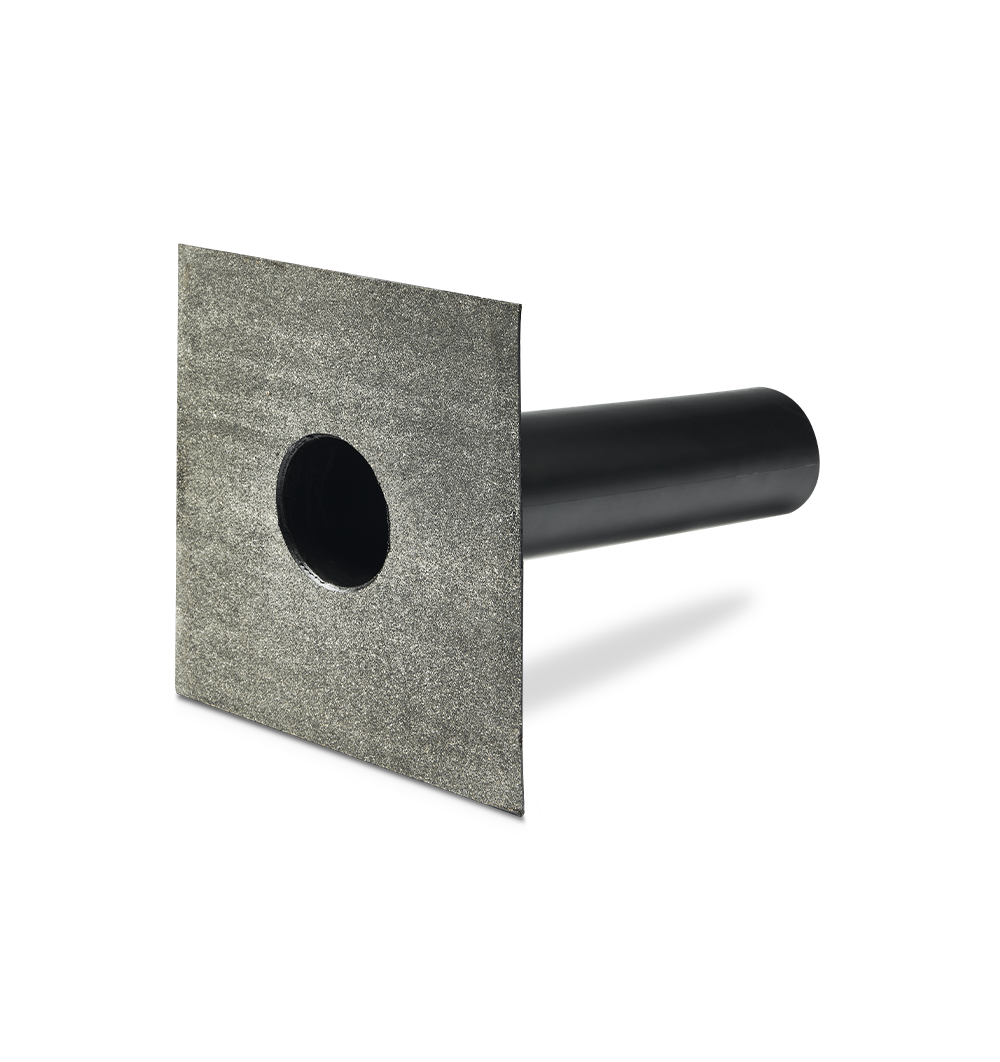

Versions BIT
| Material | Technical information | |
|---|---|---|
| BIT sandet | With bitumen sleeve, Pipe length 490 mm 1 |
D 50 mm (DN 50) |
| D 63 mm | ||
| D 75 mm (DN 70) |
||
| D 110 mm (DN 100) |
||
| D 125 mm (DN 125) |
||
Attention: The processing instructions of the roofing membrane manufacturer must be adhered to; Materials and used material compounds may be subject to change.
1 Special lengths available on request.

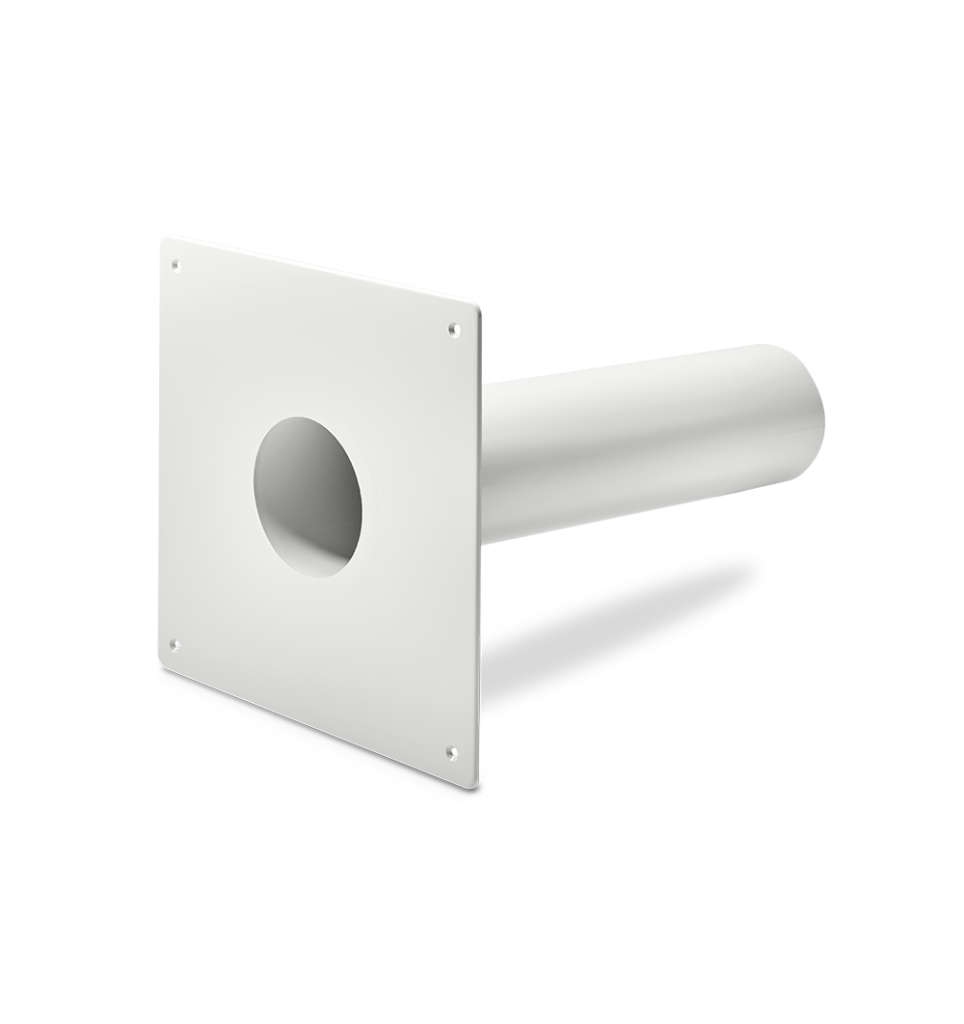

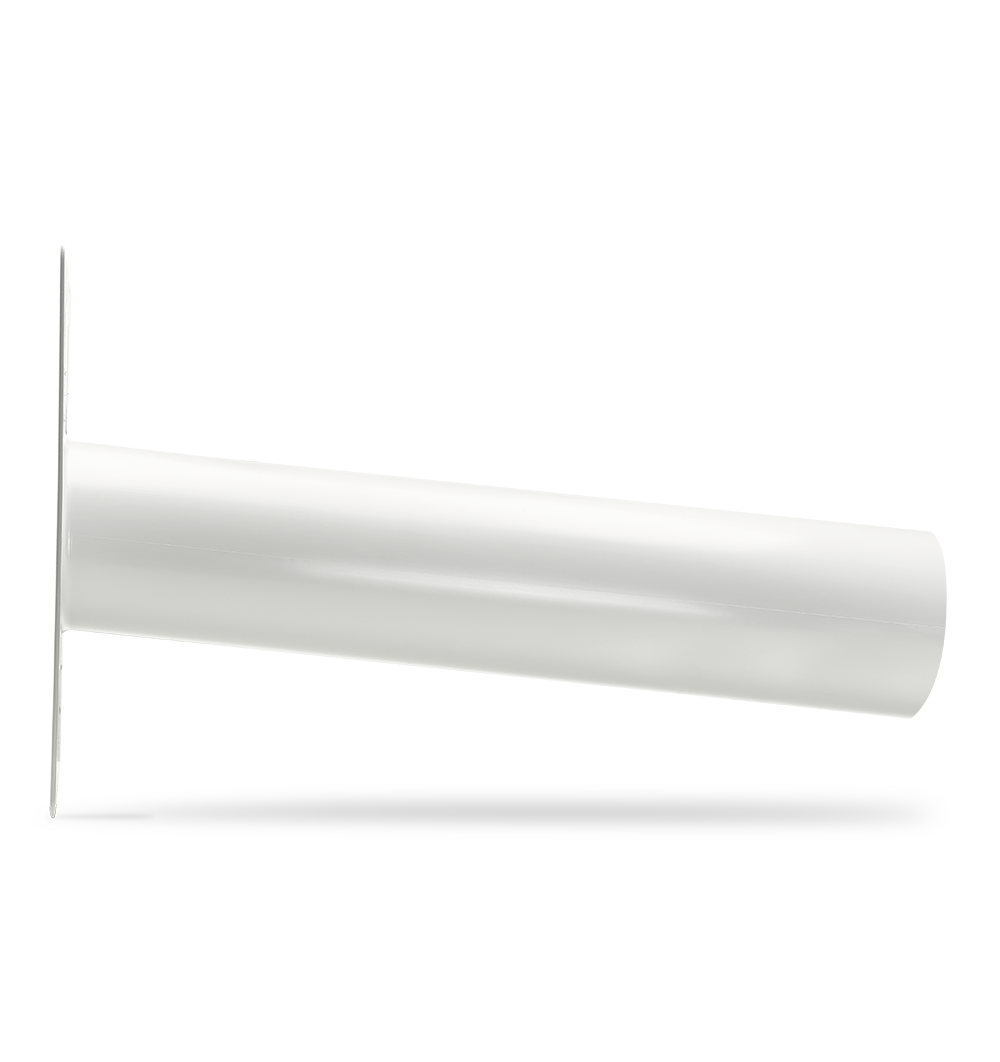

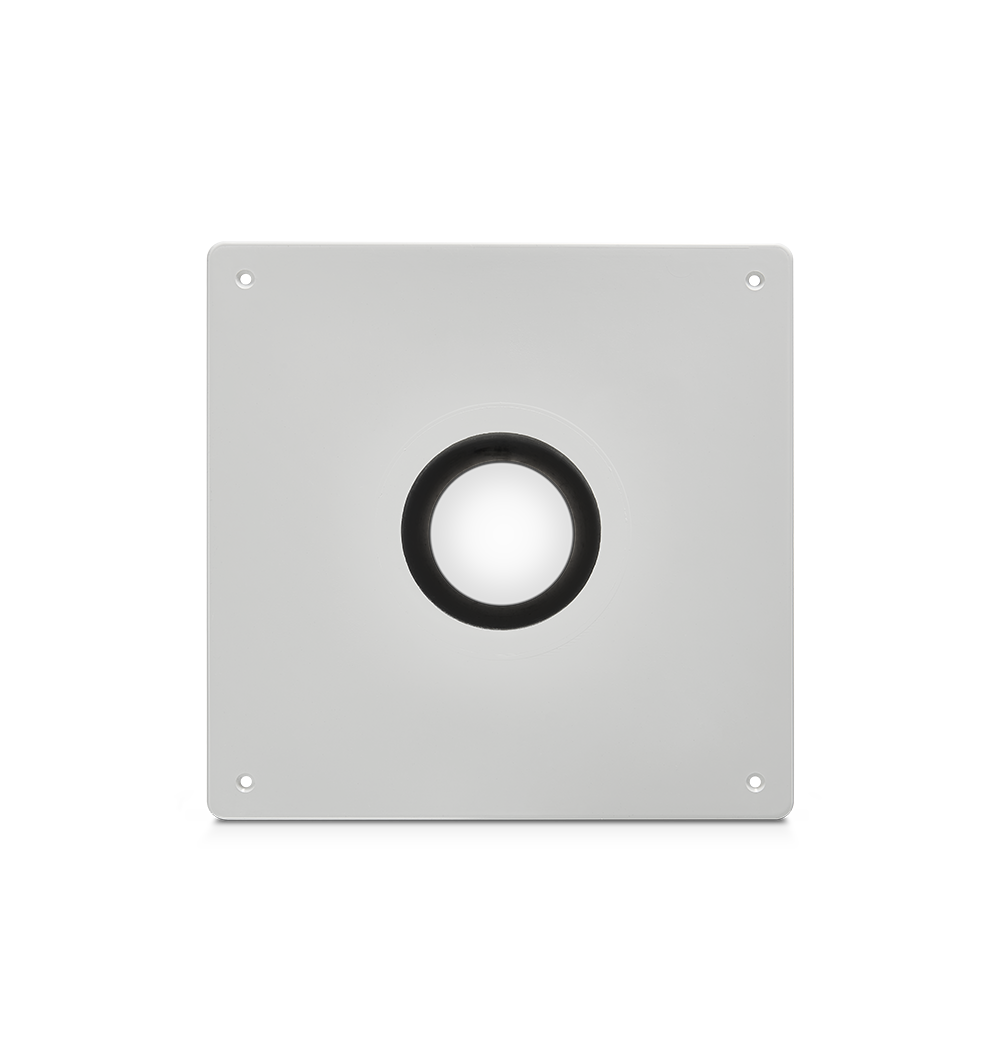

Versions PVC
| Material | Technical information | |
|---|---|---|
| PVC similar to RAL 7035, Light grey |
Pipe length 490 mm 1 | D 50 mm (DN 50) |
| D 63 mm | ||
| D 75 mm (DN 70) |
||
| D 110 mm (DN 100) |
||
| D 125 mm (DN 125) |
||
Attention: The processing instructions of the roofing membrane manufacturer must be adhered to; Materials and used material compounds may be subject to change.
1 Special lengths available on request.
Versions FPO/PP
| Material | Technical information | |
|---|---|---|
| FPO/PP 2 similar to RAL 7044, Silk grey |
Pipe length 490 mm 1 | D 50 mm (DN 50) |
| D 63 mm | ||
| D 75 mm (DN 70) |
||
| D 110 mm (DN 100) |
||
| D 125 mm (DN 125) |
||
Attention: The processing instructions of the roofing membrane manufacturer must be adhered to; Materials and used material compounds may be subject to change.
1 Special lengths available on request.
Examples
Drainage performance
LGA-certified characteristics
| Diameter | Accumulation height | |
|---|---|---|
| 35 mm | 65 mm | |
| D 50 mm (DN 50) |
0.51 litre/sec. | 1.31 litre/sec. |
| D 75 mm (DN 70) |
0.65 litre/sec. | 1.65 litre/sec. |
| D 110 mm (DN 100) |
1.00 litre/sec. | 2.65 litre/sec. |
| D 125 mm (DN 125) |
1.00 litre/sec. | 2.80 litre/sec. |
Technical drawings
| Technical data | |
|---|---|
| D | 50 / 63 / 75 / 110 / 125 mm |
| a | 300 mm |
| l | 490 mm 1 |
| t | 3,0 mm |
| litre/sec. | |
1 Special lengths available on request
Downloads
Package units
Supplied in cartons, each containing 1 unit
Tailored to meet your requirements
Do you have any questions or require a customised version of this product? Talk to our team of experts! We’ll discuss the available options with you to see how we can help!
Function
Molded part for horizontal emergency drainage through the parapet. Installation with connection to a piping system for water discharge or free outflow. When installing, the exact installation point must be determined based on the water level.
Material
Variants in PVC, FPO/PP 1, and BIT for connection to the corresponding compatible material type of the roof membrane. The materials are modified to be weather-resistant: UV-stabilized, resistant to thermal degradation and oxidative aging, as well as impact-resistant in cold temperatures.
1 Alternatively available in PE (roof membranes based on PE)
Versions BIT
| Material | Technical information | |
|---|---|---|
| BIT sandet | With bitumen sleeve, Pipe length 490 mm 1 |
D 50 mm (DN 50) |
| D 63 mm | ||
| D 75 mm (DN 70) |
||
| D 110 mm (DN 100) |
||
| D 125 mm (DN 125) |
||
Attention: The processing instructions of the roofing membrane manufacturer must be adhered to; Materials and used material compounds may be subject to change.
1 Special lengths available on request.
Versions PVC
| Material | Technical information | |
|---|---|---|
| PVC similar to RAL 7035, Light grey |
Pipe length 490 mm 1 | D 50 mm (DN 50) |
| D 63 mm | ||
| D 75 mm (DN 70) |
||
| D 110 mm (DN 100) |
||
| D 125 mm (DN 125) |
||
Attention: The processing instructions of the roofing membrane manufacturer must be adhered to; Materials and used material compounds may be subject to change.
1 Special lengths available on request.
Versions FPO/PP
| Material | Technical information | |
|---|---|---|
| FPO/PP 2 similar to RAL 7044, Silk grey |
Pipe length 490 mm 1 | D 50 mm (DN 50) |
| D 63 mm | ||
| D 75 mm (DN 70) |
||
| D 110 mm (DN 100) |
||
| D 125 mm (DN 125) |
||
Attention: The processing instructions of the roofing membrane manufacturer must be adhered to; Materials and used material compounds may be subject to change.
1 Special lengths available on request.
Examples
Drainage performance
LGA-certified characteristics
| Diameter | Accumulation height | |
|---|---|---|
| 35 mm | 65 mm | |
| D 50 mm (DN 50) |
0.51 litre/sec. | 1.31 litre/sec. |
| D 75 mm (DN 70) |
0.65 litre/sec. | 1.65 litre/sec. |
| D 110 mm (DN 100) |
1.00 litre/sec. | 2.65 litre/sec. |
| D 125 mm (DN 125) |
1.00 litre/sec. | 2.80 litre/sec. |
Technical drawings
| Technical data | |
|---|---|
| D | 50 / 63 / 75 / 110 / 125 mm |
| a | 300 mm |
| l | 490 mm 1 |
| t | 3,0 mm |
| litre/sec. | |
1 Special lengths available on request
Downloads
Package units
Supplied in cartons, each containing 1 unit
Tailored to meet your requirements
Do you have any questions or require a customised version of this product? Talk to our team of experts! We’ll discuss the available options with you to see how we can help!
