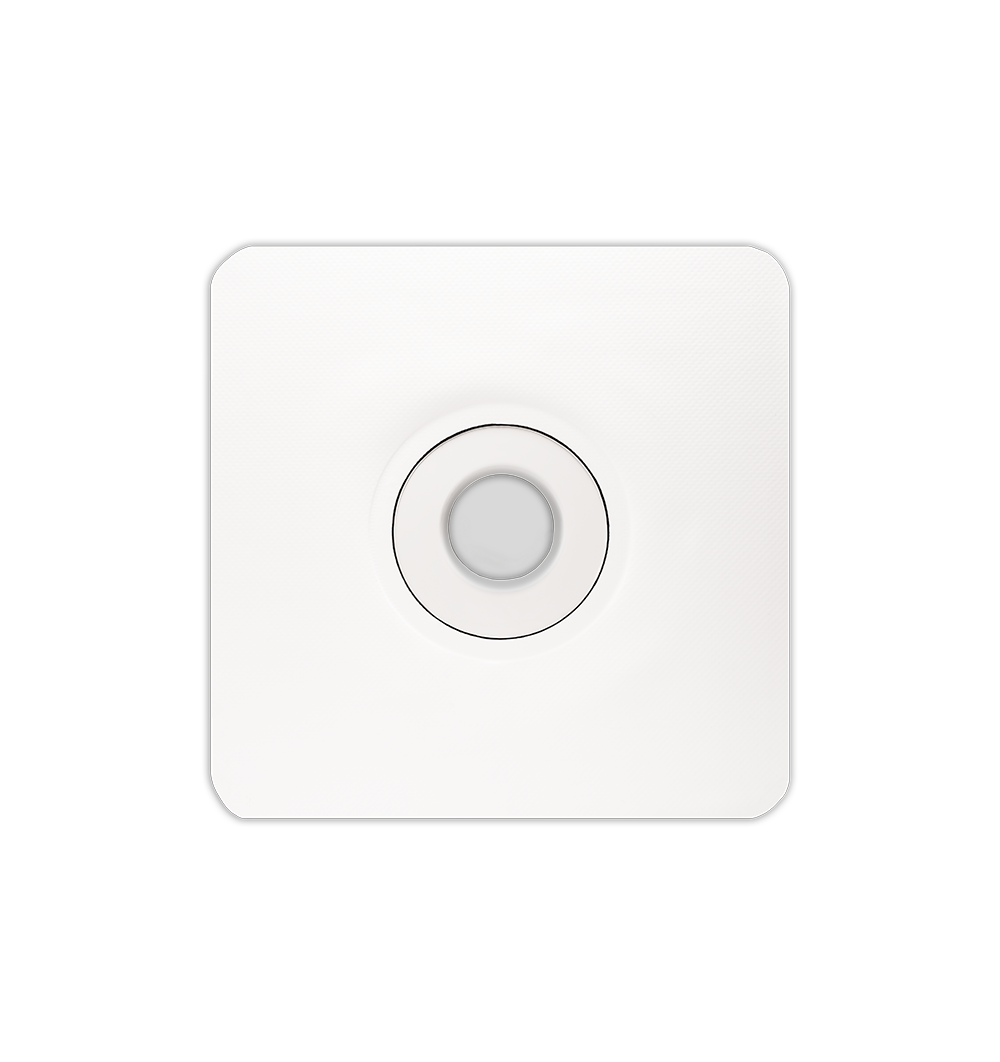

World first: Nexo Fix

Our drains, spouts, emergency overflows and flat roof ventilators are now available with an industrially manufactured, firmly welded foil connection. No clamping or gluing, the foil connection meets all manufacturer specifications. The easy handling saves time and work. There is no need to manually weld the flange to the sealing film. All foil connections come with a 10 cm wide material overhang, which enables professional welding to the surrounding roof foil. The foil connection firmly welded to the base body guarantees maximum safety. That’s how you do it.

Available now!

Contact us today

Function

Molding for vertical drainage through the roof package. Installation with connection to a pipe system for water drainage or as an extension element for a roof drain. Pay attention to appropriate backflow protection.

Material

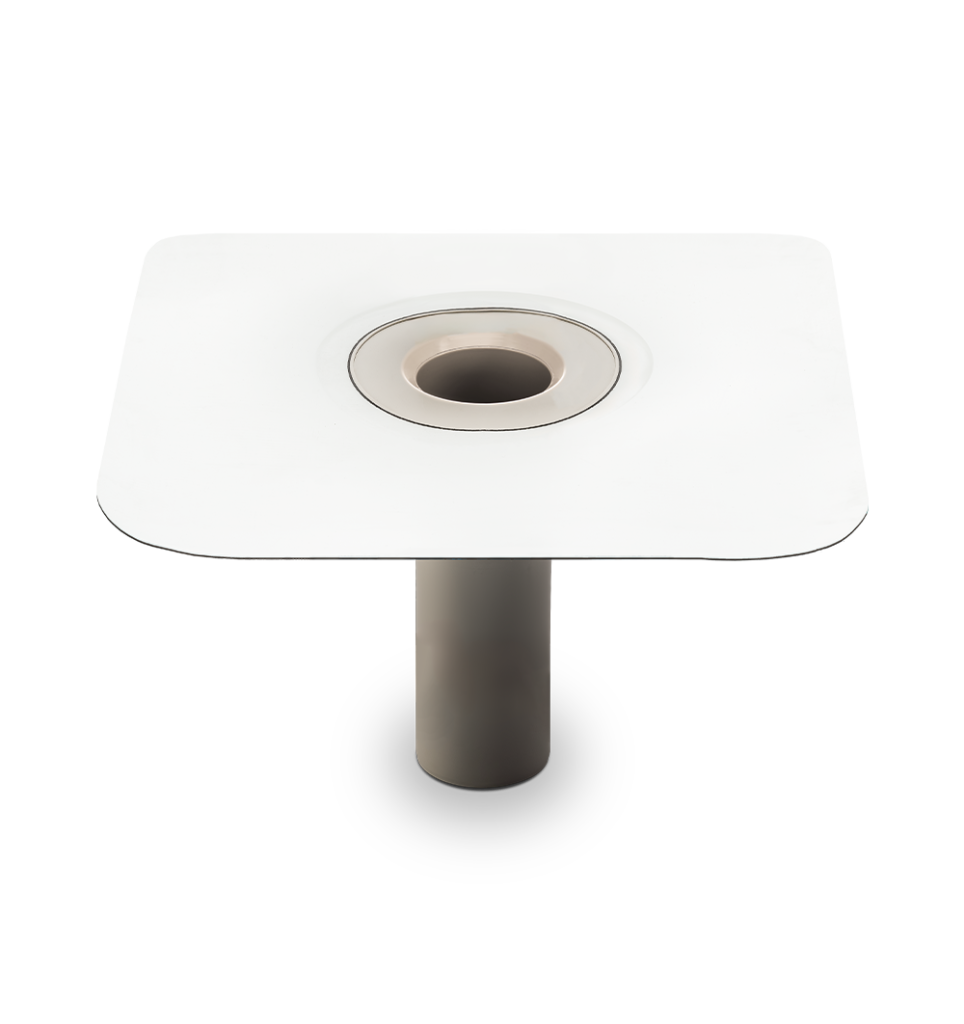

Versions PVC and FPO/PP with welded connection sleeve for easy connection to the appropriate roofing membrane. The material of the ground body is weatherproof modified: UV-stabilized, against heat degradation and oxidative aging as well as cold impact resistant.

Versions PVC

Basket D 300 mm

Material Technical information
PVC
similar to RAL 7035,
Light grey		 Basket D 300 mm

pipe length 320 mm

 D 50 mm
(DN 50)
D 75 mm
(DN 70)

Special lengths available on request.
Other diameter sizes available upon request.
Attention: The processing instructions of the roofing membrane manufacturer must be adhered to; Materials and used material
compounds may be subject to change.
Also available with a matching rolling ring.
Attention: Additional charge for rolling ring.

Nexo Fix versions

Basket D 300 mm

with welded connection sleeve, PVC similar to RAL 7035, Light grey

Versions PVC

Basket D 380 mm

Material Technical information
PVC
similar to RAL 7035,
Light grey		 Basket D 380 mm

pipe length 320 mm

 D 90 mm
D 95 mm
D 110 mm
(DN 100)
D 125 mm
(DN 125)
D 160 mm
(DN 150)

Special lengths available on request.
Other diameter sizes available upon request.
Attention: The processing instructions of the roofing membrane manufacturer must be adhered to; Materials and used material
compounds may be subject to change.
Also available with a matching rolling ring.
Attention: Additional charge for rolling ring.

Nexo Fix versions

Basket D 380 mm

with welded connection sleeve, PVC similar to RAL 7035, Light grey

Versions FPO/PP

Basket D 300 mm

Material Technical information
FPO/PP
similar to RAL 7044,
Silk grey		 Basket D 300 mm

pipe length 320 mm

 D 50 mm
(DN 50)
D 75 mm
(DN 70)

Special lengths available on request.
Other diameter sizes available upon request.
Attention: The processing instructions of the roofing membrane manufacturer must be adhered to; Materials and used material
compounds may be subject to change.
Also available with a matching rolling ring.
Attention: Additional charge for rolling ring.

Nexo Fix versions

Basket D 300 mm

Manufacturer Foil type
Bauder Thermoplan T
SIKA Sarnafil TS77
Soprema FLAGON Premio

Versions FPO/PP

Basket D 380 mm

Material Technical information
FPO/PP
similar to RAL 7044,
Silk grey		 Basket D 380 mm

pipe length 320 mm

 D 90 mm
D 95 mm
D 110 mm
(DN 100)
D 125 mm
(DN 125)
D 160 mm
(DN 150)

Special lengths available on request.
Other diameter sizes available upon request.
Attention: The processing instructions of the roofing membrane manufacturer must be adhered to; Materials and used material
compounds may be subject to change.
Also available with a matching rolling ring.
Attention: Additional charge for rolling ring.

Nexo Fix versions

Basket D 380 mm

Manufacturer Foil type
Bauder Thermoplan T
SIKA Sarnafil TS77
Soprema FLAGON Premio

Examples

Certifications

The drainage capacity has been tested by TÜV Rheinland LGA (test performed on drain Classic, incl. lip seal).

Drainage performance litre/sec

LGA-certified characteristics

Diameter Accumulation height
35 mm 65 mm
D 50 mm
(DN 50)		 3.70 N/A
D 75 mm
(DN 70)		 4.60 13.20
D 90 mm 5.30 14.60
D 110 mm
(DN 100)		 5.55 15.80
D 125 mm
(DN 125)		 5.55 16.00
D 160 mm
(DN 150)		 5.60 18.60

Technical drawings

Technical data
D1 50 / 75 90 / 95 / 110 / 125 / 160 mm
D2 300 380
l 320 320
t 3.5 3.5
Foil connection (FA) D 50 up to D 75 L 500 x W 500
Foil connection (FA) D 90 up to D 160 L 580 x W 580

Downloads

Drains Nexo Fix data sheet
Drain D 110

Package units

Supplied in cartons, each containing 1 unit

Tailored to meet your requirements

Do you have any questions or require a customised version of this product? Talk to our team of experts! We’ll discuss the available options with you to see how we can help!

Contact

Molding for vertical drainage through the roof package. Installation with connection to a pipe system for water drainage or as an extension element for a roof drain. Pay attention to appropriate backflow protection.

Versions PVC and FPO/PP with welded connection sleeve for easy connection to the appropriate roofing membrane. The material of the ground body is weatherproof modified: UV-stabilized, against heat degradation and oxidative aging as well as cold impact resistant.

Material Technical information
PVC
similar to RAL 7035,
Light grey		 Basket D 300 mm

pipe length 320 mm

 D 50 mm
(DN 50)
D 75 mm
(DN 70)

Special lengths available on request.
Other diameter sizes available upon request.
Attention: The processing instructions of the roofing membrane manufacturer must be adhered to; Materials and used material
compounds may be subject to change.
Also available with a matching rolling ring.
Attention: Additional charge for rolling ring.

with welded connection sleeve, PVC similar to RAL 7035, Light grey

Material Technical information
PVC
similar to RAL 7035,
Light grey		 Basket D 380 mm

pipe length 320 mm

 D 90 mm
D 95 mm
D 110 mm
(DN 100)
D 125 mm
(DN 125)
D 160 mm
(DN 150)

Special lengths available on request.
Other diameter sizes available upon request.
Attention: The processing instructions of the roofing membrane manufacturer must be adhered to; Materials and used material
compounds may be subject to change.
Also available with a matching rolling ring.
Attention: Additional charge for rolling ring.

with welded connection sleeve, PVC similar to RAL 7035, Light grey

Material Technical information
FPO/PP
similar to RAL 7044,
Silk grey		 Basket D 300 mm

pipe length 320 mm

 D 50 mm
(DN 50)
D 75 mm
(DN 70)

Special lengths available on request.
Other diameter sizes available upon request.
Attention: The processing instructions of the roofing membrane manufacturer must be adhered to; Materials and used material
compounds may be subject to change.
Also available with a matching rolling ring.
Attention: Additional charge for rolling ring.

Manufacturer Foil type
Bauder Thermoplan T
SIKA Sarnafil TS77
Soprema FLAGON Premio
Material Technical information
FPO/PP
similar to RAL 7044,
Silk grey		 Basket D 380 mm

pipe length 320 mm

 D 90 mm
D 95 mm
D 110 mm
(DN 100)
D 125 mm
(DN 125)
D 160 mm
(DN 150)

Special lengths available on request.
Other diameter sizes available upon request.
Attention: The processing instructions of the roofing membrane manufacturer must be adhered to; Materials and used material
compounds may be subject to change.
Also available with a matching rolling ring.
Attention: Additional charge for rolling ring.

Manufacturer Foil type
Bauder Thermoplan T
SIKA Sarnafil TS77
Soprema FLAGON Premio

The drainage capacity has been tested by TÜV Rheinland LGA (test performed on drain Classic, incl. lip seal).

Diameter Accumulation height
35 mm 65 mm
D 50 mm
(DN 50)		 3.70 N/A
D 75 mm
(DN 70)		 4.60 13.20
D 90 mm 5.30 14.60
D 110 mm
(DN 100)		 5.55 15.80
D 125 mm
(DN 125)		 5.55 16.00
D 160 mm
(DN 150)		 5.60 18.60
Technical data
D1 50 / 75 90 / 95 / 110 / 125 / 160 mm
D2 300 380
l 320 320
t 3.5 3.5
Foil connection (FA) D 50 up to D 75 L 500 x W 500
Foil connection (FA) D 90 up to D 160 L 580 x W 580

Supplied in cartons, each containing 1 unit

Do you have any questions or require a customised version of this product? Talk to our team of experts! We’ll discuss the available options with you to see how we can help!

Contact
